Press Roller Type Unwinding Cloth Finishing Machines 0 - 100m/Min Speed

Basic Information
Place of Origin: Hangzhou,Zhejiang
Brand Name: LIANGYU
Model Number: LY-PRU
Minimum Order Quantity: 1set
Price: 3000~100000usd
Packaging Details: Packed in standard export wooden case
Delivery Time: 30-50working days
Supply Ability: 50units/month
Detail Information
Fabric: Knitting Fabric, Woven Fabric,nylon Fabric Power: 1.5KW
Working Width: 1800-3600mm Speed: 0-100m/min
Weight: 900kg Overall Dimensions: 1500*2400*1600mm
Warranty: 12months Certificate: CE
High Light:

textile inspection machine


fabric winding machine

Product Description

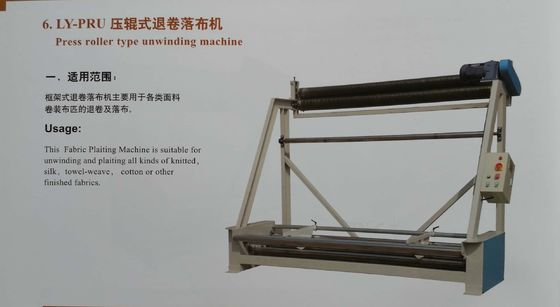

Press Roller Type Unwinding Machine suitable for all kinds of knitted, silk,towel-weave,cotton or other finished fabrics


Press Roller Type Unwinding Machine's Usage:

This machine is suitable for unwinding and plaiting all kinds of knitted, silk,towel-weave,cotton or other finished fabrics.

Machine Features :

  1. Ergonomically designed structure is simple and easy to maintain.
  2. Inverter control system provides speed and tension adjustment,it can also execute forward and reverse action.
  3. Upper and lower delivery roller drives by two motors,the speed can be adujsted to tensionless state according to the need of control when unwinding the fabrics.
  4. Lower the motorized roller frame,thickening of main frame, apply to the heavier fabrics(denim fabrics of more than 100kg)
  5. Higher frame can increase the efficiency of winding,an cloth cart can put under the outlet frame for the convenient of removal.

Machine Technical Specifications:


Unwinding Speed 0-100m/min
Working Width 1800-3600mm
Max Roll Diameter 500mm
Max Roll Weight 100kg
Power Supply 3phase 380V 50HZ
Power 1.5KV
Weight 900kg
Dimension 1500*2400*1600mm

Press Roller Type Unwinding Cloth Finishing Machines 0 - 100m/Min Speed 0


Press Roller Type Unwinding Cloth Finishing Machines 0 - 100m/Min Speed 1



1: Are you a trading company or manufacturer,where is your factory location?
A1: Hangzhou Liangyu is a professional manufacturer of textile finishing machine over 15 years & located in Hangzhou city,Zhejiang Province.We have branch office in Jiangsu Province and Anhui Province.
2: What is your payment term?
A2:By T/T 30% in advance and balance to be paid before shipment or 100% by L/C at sight.

3: How about your delivery time?

A3:Normally ,15-20 working days upon the order confirmation.
4: What is your packing pattern for sea shipment?
A4: FCL:steel pallet + film covering. LCL:steel frame + wooden case packing.
5: How about your product quality?
A5: We have QC on each process in production.Liangyu now is the main supplier of textile finishing machineries in China.Our product has been well received by domestic and foreign customers.



Our Services

B1. Your any enquiries will be replied within 12 hours.

B2. We offer you professional services in fluent English.

B3.Quality: we have QC on each process in production.

B4. We will give the right schedule and quality machine.

B5. Without man-made faults,the warranty is 12months,spare parts can be replaced within 3mths since the delivery of machine.

B6. Engineers available to service machinery overseas,commissioning ,technical support and training,etc.
