Stainless Conveyor Finishing Machine In Textile Unwinding 0 - 100m/Min Speed

Basic Information
Place of Origin: Hangzhou,Zhejiang
Brand Name: LIANGYU
Model Number: LY-SCU
Minimum Order Quantity: 1set
Price: 3000~100000usd
Packaging Details: Packed in standard export wooden case
Delivery Time: 30-50working days
Supply Ability: 50units/month
Detail Information
Certificate: CE Weight: 900kg
Power: 1.5 Working Width: 1800-3600mm
Speed: 0-100m/min Overall Dimensions: 1500*2400*1600mm
Warranty: 12months Fabric: Knitting Fabric, Woven Fabric,nylon Fabric
High Light:

fabric finishing machine

,

fabric winding machine


Product Description

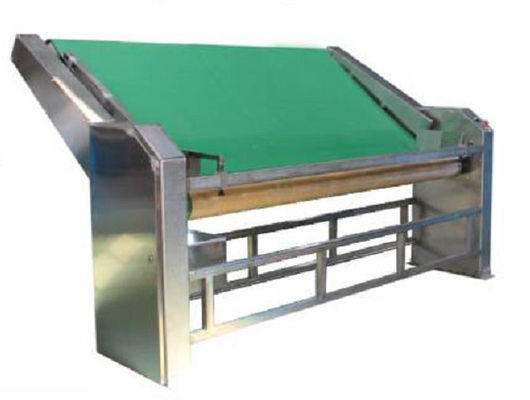

Stainless Conveyor Unwinding Machine suitable for knitted of elastic fabrics



Usage:



It’s suitable for all kinds of knitting,silk, terry cloth,cotton cloth and ,mainly used to eliminate the tension fabrics when unwinding the cloth.



Features:

  1. Ergonomically designed structure is simple and easy to maintain.
  2. Stainless steel structure to resist chemical and acides corrosion.
  3. The conveyor roller is driven by a reduction motor, the speed can be adjustable, to keep the cloth tension-free when unwinding.
  4. Higher frame can increase the effciency of unwinding ,and cloth cart can put under the ourlet frame for the convenient of removal.

Technical Specifications:



Unwinding Speed 0-100m/min
Working Width 1800-3600mm
Max Roll Diameter 500mm
Max Roll Weight 100kg
Power Supply 3phase 380V 50HZ
Power 1.5KV
Weight 900kg
Dimension 1500*2400*1600mm


Stainless Conveyor Finishing Machine In Textile Unwinding 0 - 100m/Min Speed 0



Stainless Conveyor Finishing Machine In Textile Unwinding 0 - 100m/Min Speed 1


Stainless Conveyor Finishing Machine In Textile Unwinding 0 - 100m/Min Speed 2

Stainless Conveyor Finishing Machine In Textile Unwinding 0 - 100m/Min Speed 3
