Cotton Textile Finishing Machine Frame Structure Fabric Unwinding And Plaiting Machine

Basic Information
Place of Origin: Hangzhou,Zhejiang
Brand Name: LIANGYU
Model Number: LY-FUP
Minimum Order Quantity: 1set
Price: 3000~100000usd
Packaging Details: Packed in standard export wooden case
Delivery Time: 30-50working days
Supply Ability: 50units/month
Detail Information
Certificate: CE Weight: 900kg
Power: 1.5 Working Width: 1800-3400mm
Speed: 0-100m/min Overall Dimensions: 1500*2400*1600mm
Warranty: 12months Fabric: Knitting Fabric, Woven Fabric,nylon Fabric
High Light:

fabric finishing machine


textile inspection machine

Product Description

Frame Structure Fabric Unwinding and Plaiting Machine suitable for all kinds of knitted, silk, towel-weave,cotton



It’s suitable for unwinding and plaiting all kinds of knitted,silk,tower-weave ,cotton or other finished fabrics.


  1. Ergonomically designed structure is simple and easy to maintain.
  2. Inverter control system provides speed and tension adjustment,it can also execute forward and reverse action.
  3. Upper and lower delivery roller drives by motors, thespeed can be adjusted to tensionless state according to the need of control when unwinding the fabrics.
  4. Lower the motorized roller frame,thickening of main frame,apply to the heavier fabrics(denim fabrics of more than 100kg).
  5. Higher frame can increase the efficiency of unwinding, and cloth cart can put under the outlet frame for the convenient of removal.

Technical Specifications:

Unwinding Speed 0-100m/min
Working Width 1800-3600mm
Max Roll Diameter 500mm
Max Roll Weight 100kg
Power Supply 3phase 380V 50HZ
Power 1.5KV
Weight 900kg
Dimension 1500*2400*1600mm

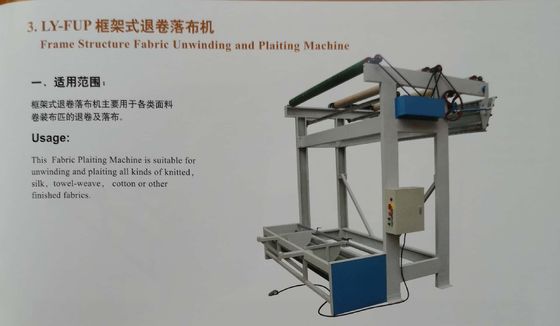

Cotton Textile Finishing Machine Frame Structure Fabric Unwinding And Plaiting Machine 0
