High Accuracy Textile Finishing Machine Pneumatic Batcher Winding Machine

Brand Name: LIANGYU
Model Number: LY-PBW
MOQ: 1set
Price: 3000~100000usd
Delivery Time: 30-50working days
Detail Information
Place of Origin:
Hangzhou,Zhejiang
Fabric:
Knitting Fabric, Woven Fabric
Weight:
1400kgs
Power:
3.5KW
Certificate:
CE
Working Width:
1800-3500mm
Speed:
≦80m/min
Overall Dimensions:
2500*1550*2130mm
Warranty:
12months
Packaging Details:
Packed in standard export wooden case
Supply Ability:
50units/month
Highlight:

fabric finishing machine

,

fabric winding machine

Product Description

Pneumatic Batcher Winding Machines infrared photoelectric controlled air pressure two roller centering alignment system



Pneumatic batcher winding machine is suitable ofr metering fabric length and winding fabric.Make small roll fabric to continuous big roll in a frame with constant tension control.Generally it’s used in bonding process,coating process.



Features:

  1. Line speed 0-80m/min, step-less speed regulation of frequency conversion.
  2. Infrared photoelectric controlled air pressure two roller centering alignment system,accuracy ±5mm.
  3. Equipped with rubber rollers to get rid of crease.
  4. Tension control devices can adjust volume hard and soft.
  5. Optical photoelectric cloth guider to ensure the cloth is always at the center of the machine.

Technical specifications:



Fabric Width 1800mm-3500mm
Diameter of fabric rolls 500-1500mm
Speed 80m/min
Alignment Tolerance ≦6mm
Power 3.5KW
Electric Specs 3phase-380V 50Hz
Dimensions 2500*1550*2130mm
Weight 1400KG

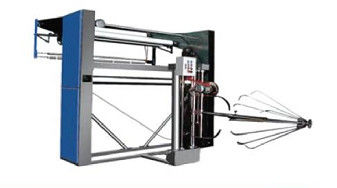

High Accuracy Textile Finishing Machine Pneumatic Batcher Winding Machine 0





High Accuracy Textile Finishing Machine Pneumatic Batcher Winding Machine 1
