Tensionless Fabric Inspection Machine / Fabric Winding Machine 3.4KW Power

Basic Information
Place of Origin: Hangzhou,Zhejiang
Brand Name: LIANGYU
Model Number: LY-TIWA
Minimum Order Quantity: 1set
Price: 3000~100000usd
Packaging Details: Packed in standard export wooden case
Delivery Time: 30-50working days
Supply Ability: 50units/month
Detail Information
Certificate: CE Weight: 2500kgs
Power: 3.4KW Working Width: 1800-3600mm
Speed: 0-80m/min Overall Dimensions: 4950*3100*2800mm
Warranty: 12months Fabric: Knitting And Spandex Farbic
Highlight:

textile inspection machine

,

fabric winding machine


Product Description

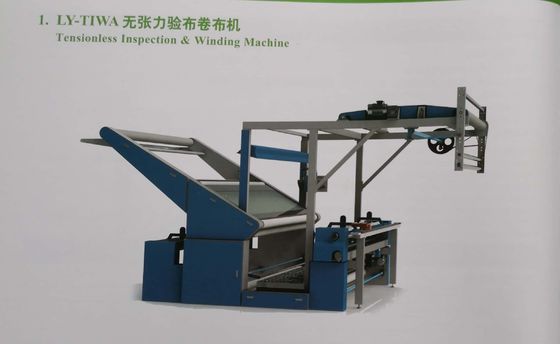

Tensionless Inspection & Winding Machine for Kintting and Spandex farbics etc.





This machine is suitable for inspecting and winding knitting and spandex fabrics etc.

Features:

  1. Tension controller comply with tension adjustment roller can automatically adjust speed inconsistent,workers and easily complete cloth inspection in tensionless status.
  2. Illumination light box attached inside the inspection table, the tilted angle of inspection table makes the inspection work simpler and faster.
  3. The electronic counter can accurately calculate the length of cloth.
  4. Auto photo-electrical sensor edge alignment device for perfect fabric winding.
  5. Working platform in between inspection table and winding device.
  6. Stainless steel expanding roller,make cloth smooth to expand.

Technical specifications:

Fabric Width 1800mm-3600mm
Diameter of fabric rolls ≦500mm
Max Speed 0-80m/min
Dimensions 4950*3100*2800mm
Alignment Tolerance ≦5mm
Power Consumption 3.4KW
Weight 2500KG













Tensionless Fabric Inspection Machine / Fabric Winding Machine 3.4KW Power 0Tensionless Fabric Inspection Machine / Fabric Winding Machine 3.4KW Power 1
