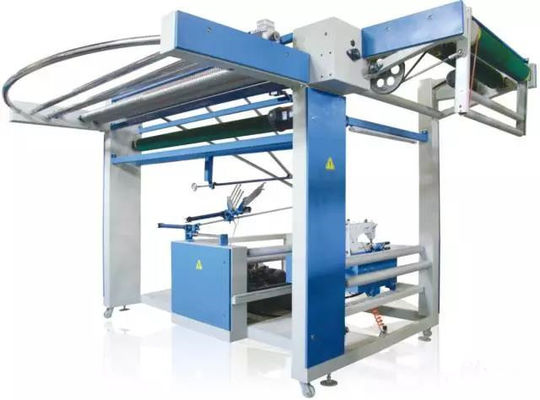

Knitted Fabric Textile Finishing Machine 4.5KW Power 2200 - 2600mm Working Width

Basic Information
Place of Origin: Hangzhou,Zhejiang
Brand Name: LIANGYU
Model Number: LY-AKDS
Minimum Order Quantity: 1set
Price: 3000~100000usd
Packaging Details: Packed in standard export wooden case
Delivery Time: 30-50working days
Supply Ability: 50units/month
Detail Information
Certificate: CE Weight: 1800kgs
Power: 4.5KW Working Width: 2200-2600mm
Speed: 0-40m/min Overall Dimensions: 2910*4000*2350mm
Warranty: 12months Fabric: Knitted Farbic
High Light:

textile inspection machine

,

fabric winding machine


Product Description



Automatic Knitted Fabric Double Folding and Sewing Machine equipped stainless steel edge expanding plate





LY-AKDS Automatic Knitted Fabric Double Folding & Sewing Machine





Usage:

The machine allows fabric selvedge sewing process automatically for knitted fabrics into tubular form before dying.



F    Features:

  1. With stainless steel edge expanding plate and uncurl rollers, to improve the fabric edge hemming problem.
  2. Automatic Infrared photoelectric sensor can automatically adjust the fabric folded position.
  3. Equipment operational process: inlet-center correction-automatic folding-sewing-outlet plaiting.
  4. The machine will stop automatically at end of fabric.
  5. Equipped with cloth center correcting device, ensure the cloth move at straight direction
  6. Equipped with high-speed double (or single) thread chain-stitch machine, equipped with automatic lubricate devices, to ensure high-speed sewing .
  7. Track-IR probe into hem, selvedge stitch width can be adjusted.
  8. The inverter automatically adjust the fabric tension running just one operator controls,saving manpower.
  9. High speed single sewing machine, can adjust the stitch length according to processing requirements.

Technical Specifications:



Fabric Width 2200-2600mm
Stitching Speed 0-40m/min
Needle Distance 5-7mm (adjustable)
Electric Specs 3Phase-380V 50HZ
Power 4.5KW
Dimension 2910mm*4000mm*2350mm
Weight 1800kg








Knitted Fabric 	Textile Finishing Machine 4.5KW Power 2200 - 2600mm Working Width 0



Knitted Fabric 	Textile Finishing Machine 4.5KW Power 2200 - 2600mm Working Width 1
