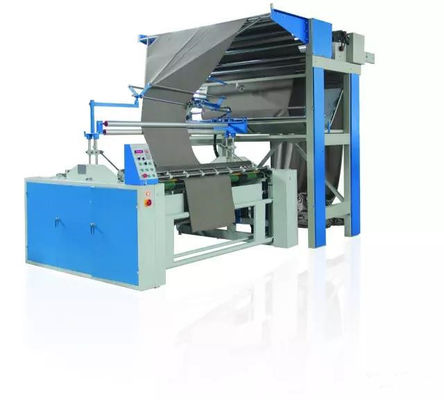

High Speed Cloth Finishing Machines 1800 - 3400mm Working Width 1950kgs Weight

Basic Information
Place of Origin: Hangzhou,Zhejiang
Brand Name: LIANGYU
Model Number: LY-TSF
Minimum Order Quantity: 1set
Price: 3000~100000usd
Packaging Details: Packed in standard export wooden case
Delivery Time: 30-50working days
Supply Ability: 50units/month
Detail Information
Certificate: CE Weight: 1950kgs
Power: 3KW Working Width: 1800-3400mm
Speed: 0-60m/min Cloth Type: T/C T/R Filament Chiffon And Knitted Fabricsfabrics
Overall Dimensions: 2850*2700*2470mm Warranty: 12months
High Light:

textile inspection machine

,

fabric winding machine


Product Description

Tensionless Tensionless Fabric Doubling & Plaiting Machine high speed high prduction



Usage:



This machine is a newly research and develoed model of Liangyu company, patent No.LZ:2011 2 0203620.7, it is perfect tool for plating the fabric in one meter/yard fold, expecially for T/C,T/R,,filament,Chiffon and knitted fabrics, fabric is single folded and plated at high speed.

Accurate meter/yard folds in high speed fabric plaiting,thus increases production.Fast and easily handled,requiring one operator only, make fold of accurate one meter/yard high speed operation ensure high production.



Features:



1.  Infrared activated centering system ensures the allgnment of fabric edge with in 3cm.

2. J-Box can significanty reduce the tension of the farbic during folding process.

3. Non-Contact inductive electronic counter to ensure count is accurate and reliable.

4. Inverter provides variable speed adjustment from 0-60 meter/min.

5. Clear and easy use control panel ensure the workers to operate more conveniently.

6. Front and rear emergency stop switch will increase operational safety.

7. Use flannel,rubber and needle plate for pressing plate according to the nature of fabric.

8. Hydraulic controlled (Server motor is optional) plaiting platform ensure accuracy of plaiting within 1cm.



Technical Specifications:



Working Width 1800-3400mm
Speed 0-60m/min
Plaiting Height 300mm
Electric Specs 3KW 3Phase-380V 50HZ
Dimension 2850mm*2700mm*2470mm
Weight 1950kg



High Speed Cloth Finishing Machines 1800 - 3400mm Working Width 1950kgs Weight 0

High Speed Cloth Finishing Machines 1800 - 3400mm Working Width 1950kgs Weight 1

High Speed Cloth Finishing Machines 1800 - 3400mm Working Width 1950kgs Weight 2
