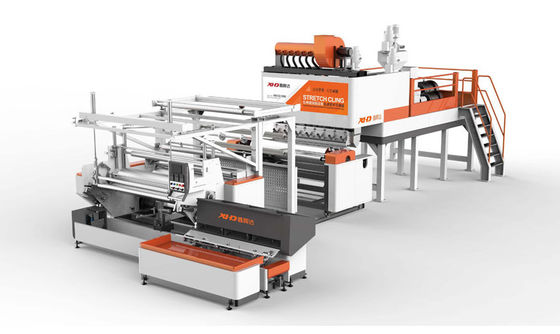

3 layers co-extrusion plastic stretch film extruder machine

Certification
China Taizhou SPEK Import and Export Co. Ltd certification
China Taizhou SPEK Import and Export Co. Ltd certification
I'm Online Chat Now

3 layers co-extrusion plastic stretch film extruder machine

3 layers co-extrusion plastic stretch film extruder machine
3 layers co-extrusion plastic stretch film extruder machine

Large Image :  3 layers co-extrusion plastic stretch film extruder machine

Product Details:
Place of Origin: Guangdong,China
Brand Name: SPEK
Certification: ISO14009001 /SGS/CE/CCC
Model Number: 55/80/55*1250
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: 3000~100000usd
Packaging Details: Packed with EPE foam, blanket and stretch film
Delivery Time: 30-50working days
Supply Ability: 20sets per month

3 layers co-extrusion plastic stretch film extruder machine

Description
Condition: New Application: LLDPE Film/ LDPE Film/PE Film
Plastic Processed: PE Layers: Three-screw
Voltage: Up To Customer Required Power: 88kw
Screw Diameter: 55/80/55mm Screw L/D: 30:1
Products Width: 1000mm/(2*500mm) Screw Speed: 50-150rpm
Thickness: 12-50 μm Capacity: 100-180kg/h
Layer Structure: AB/ACBCA Total Weight: 9.5T
High Light:

pvc stretch film making machine

,

stretch film plant

Features of pallet cast stretch film machine



1) Higher output with stable quality stretch film, superior than the same suppliers more than 30%.



2) Higher speed with good ideal tensile and anti-pricking stretch film, which ensure the bigger output.



3) Power saving and good plasticization which can save 1/3 power among the same model machine.



4) Good water cooling effect and imported die steel to make sure making even and good ductility

stretch film.



5) Swing system installed to adjust the film thickness and evenness.



6) The alloy screw adopts special mixing function and high plasticizing design which combine import

static mixer to ensure plasticization is great, color is uniform and increase extrusion capacity greatly.



7) Auto PLC controlled, Auto cutting & rewinding, fully automatic.



8) Bottom price with best WHOLE LIFE after sales service.



Finished Products of pallet cast stretch film machine

It is a very good kind of packaging material mostly used in the industrial field, port pallet packaging, building material packaging, hardware packaging etc. It enjoys the following advantages:

1) Good tensile strength.

2) Superior anti-pricking ability.

3) High transparency.

4) Good ductility and anti-impact strength.

5) Stable sticky sides etc.



Model Number
 55/80/55*1250
Products Thickness 0.012-0.05mm
Screw Diameter ɸ55*80*55mm Capacity 100-180kg/h
Screw L/D 30:1 Layer Structure AB/ACBCA
Screw Speed 50-150rpm Machine Weight 9.5T
Products Width 1000/2*500mm Dimension(L*W*H) 8500*3200*3000

Structure of film

layers

 3layers Output 3.5-3.8T/24H
Cooling temperature 18-25 degree Extruded Capacity  80-150kg/h



3 layers co-extrusion plastic stretch film extruder machine 03 layers co-extrusion plastic stretch film extruder machine 13 layers co-extrusion plastic stretch film extruder machine 2
