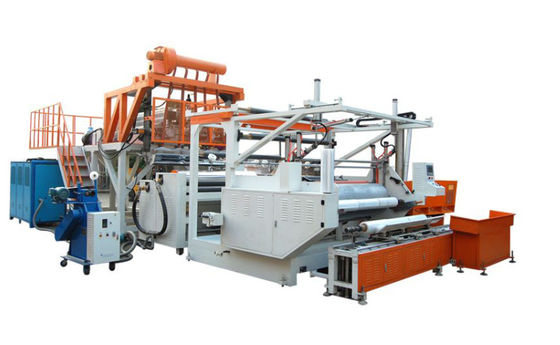

PE Stretch Film Machine High Capacity Auto PLC Control System

Basic Information
Place of Origin: Guangdong,China
Brand Name: SPEK
Certification: ISO14009001 /SGS/CE/CCC
Model Number: 65/100/80*1850
Minimum Order Quantity: 1set
Price: 3000~100000usd
Packaging Details: Packed with EPE foam, blanket and stretch film
Delivery Time: 30-50working days
Supply Ability: 20sets per month
Detail Information
Condition: New Application: LLDPE Film/ LDPE Film/PE Film
Plastic Processed: LLDPE/LDPE Layers: Three-screw
Voltage: Up To Customer Required Plwer: 150kw
Screw Diameter: 65/100/80 Screw L/D: 30:1
Products Width: 1500mm/(3*500mm) Screw Speed: 50-150rpm
Thickness: 12-50 μm Capacity: 220-350kg/h
Layer Structure: AB/ACBCA Total Weight: 15T
High Light:

pvc stretch film making machine

,

stretch film extrusion machine


Product Description

Features of pallet cast stretch film machine



1) Higher output with stable quality stretch film, superior than the same suppliers more than 30%.



2) Higher speed with good ideal tensile and anti-pricking stretch film, which ensure the bigger output.



3) Power saving and good plasticization which can save 1/3 power among the same model machine.



4) Good water cooling effect and imported die steel to make sure making even and good ductility

stretch film.



5) Swing system installed to adjust the film thickness and evenness.



6) The alloy screw adopts special mixing function and high plasticizing design which combine import

static mixer to ensure plasticization is great, color is uniform and increase extrusion capacity greatly.



7) Auto PLC controlled, Auto cutting & rewinding, fully automatic.



8) Bottom price with best WHOLE LIFE after sales service.



Finished Products of pallet cast stretch film machine

It is a very good kind of packaging material mostly used in the industrial field, port pallet packaging, building material packaging, hardware packaging etc. It enjoys the following advantages:

1) Good tensile strength.

2) Superior anti-pricking ability.

3) High transparency.

4) Good ductility and anti-impact strength.

5) Stable sticky sides etc.



Model Number 65/100/80*1850 Products Thickness 0.012-0.05mm
Screw Diameter ɸ65*100*80mm Capacity 200-350kg/h
Screw L/D 30:1 Layer Structure AB/ACBCA
Screw Speed 50-150rpm Machine Weight 15T
Products Width 1500/3*500mm Dimension(L*W*H) 15000*4500*3800



PE Stretch Film Machine High Capacity Auto PLC Control System 0PE Stretch Film Machine High Capacity Auto PLC Control System 1PE Stretch Film Machine High Capacity Auto PLC Control System 2
