Customized PTFE Coated Glass Fiber Conveyor Belts Heat Resistant

Certification
China Taizhou SPEK Import and Export Co. Ltd certification
China Taizhou SPEK Import and Export Co. Ltd certification
I'm Online Chat Now

Customized PTFE Coated Glass Fiber Conveyor Belts Heat Resistant

Customized  PTFE Coated Glass Fiber Conveyor Belts  Heat Resistant
Customized  PTFE Coated Glass Fiber Conveyor Belts  Heat Resistant

Large Image :  Customized PTFE Coated Glass Fiber Conveyor Belts Heat Resistant

Product Details:
Place of Origin: Jiangsu China
Brand Name: SPEK
Certification: SGS
Model Number: Seamless belts
Payment & Shipping Terms:
Minimum Order Quantity: one piece
Price: 30~800usd
Packaging Details: standard export cartons
Delivery Time: 2-10working days
Supply Ability: 3000pcs per week

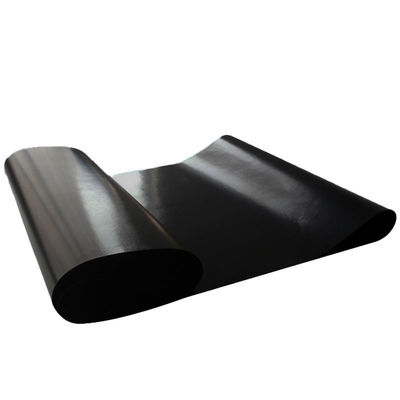

Customized PTFE Coated Glass Fiber Conveyor Belts Heat Resistant

Description
Material: PTFE Coated Glassfiber Seamless Belt Belt Type: Flat Belt
Color: Black Ability: Heat Resistant Stability
Temp Resistance: -140 -+ 260 Size: Customized Size
Thickness: 0.35mm~0.55mm Belt Length: Upto 6000mm Can Be Supplied
Feature: Chemical Resistance,flex Fatigue Resistance Advantage: Non-stick,without Joint, Long Using Life
High Light:

customized Glass Fiber Conveyor Belts

,

heat resistant Glass Fiber Conveyor Belts

,

heat resistant fusing belt unit

(Teflon) PTFE Coated Glassfiber Conveyor Belts With Button And Edge-Reinforcement Or Kevlar Guiding

PTFE seamless belt is specially weaved to be seamless , and coated with PTFE(Teflon).

PTFE conveyor belts are used primarily because of their special properties,such as temperature resistance, light weight, non-stick, and chemical resistance.

Properties
  • Superior Release Non-stick surface
  • Operating temperature range -140℃ +260 ℃
  • Dimensionally stable
  • Good heat transfer, Energy saving
  • Light weight
  • Excellent anti-static;
  • Chemically inert
  • Non-flammable
  • Non-toxic
  • Anti- fatigue, durable, long service life;



PTFE fusing machine belt

1. seamless belt:

It is made of the cylindrical high-strength glass fiber or Kevlar (aramid) fabric

which is woven by knitting round loom,and is coated with PTFE emulsion.

The seamless belt completely overcomes the problems of jointed belts

such as bad running stability and off-tracking,etc.

The service life of PTFE seamless fusing machine belt is three times

longer than any other kind of fusing machine belt.

Advantages of PTFE coated seamless belt: Stable running, long service life.

Disadvantages: High prices.



2, Jointed fusing machine belt:



Usually with black color, jointed with F46 film.

Advantages: Low prices.

Disadvantages: Low intensity, easy deviation, short service life of usually 3 months.



3, double-layer fusing machine belt:



Advantages: High strength, long service life, without deviation.

We can also make antistatic fusing machine belt according to customers' requirements.



Hashima Seamless fusing Machine Belt sizes:

Item No. Size(mm)
HP-220K(upper) 220*1550
HP-220K(lower) 220*1830
HP-220K-ii(lower) 220*2230
HP-330K(upper) 330*1550
HP-330K(lower) 330*1830
HP-450K(upper) 450*1550
HP-450K(lower) 450*1830

Oshima Seamless Fusing Machine Belt sizes:

Item No. Size L(upper) L(lower) S(upper) S(lower) S(total)
450F(GS) 460 1540 1830 0.71 0.84 1.55
600F 625 1400 2000 0.88 1.25 2.13
60LN 625 1800 2400 1.13 1.50 2.63
60LD 610 2450 2450 1.49 1.49 2.99
90LD 910 2450 2450 2.23 2.23 4.46







Customized  PTFE Coated Glass Fiber Conveyor Belts  Heat Resistant 0

Customized  PTFE Coated Glass Fiber Conveyor Belts  Heat Resistant 1
