Material: | PTFEcoated Glassfiber Seamless Belt | Thickness: | 0.35~0.45mm |
---|---|---|---|
Color: | Black , Brown | Ability: | Heat Resistant Stability |
Temp Resistance: | - 140 - +260 | Application: | For Hashima, Oshima,Veit, NGAI And So On |
Highlight: | hashima fusing machine belt,high temperature belts |

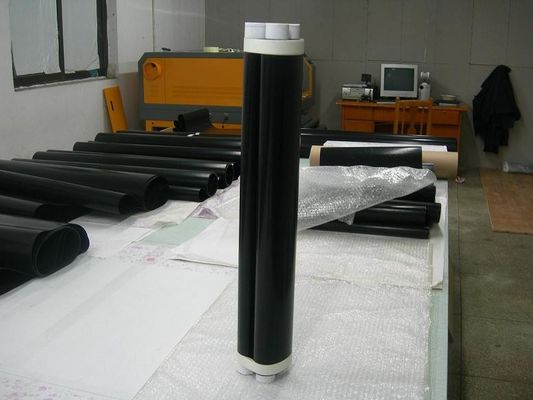

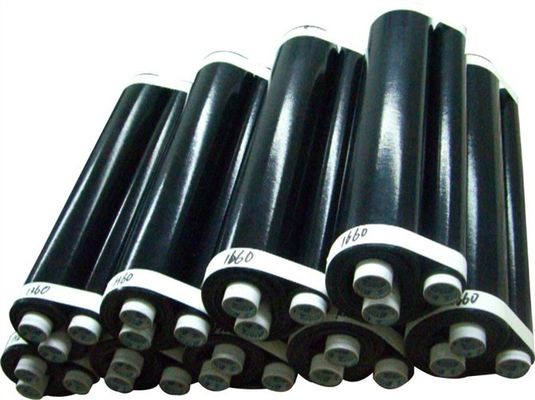

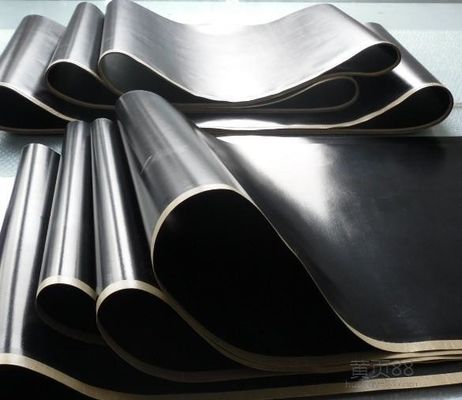

PTFE COATED FIBERGLASS FABRIC BELT
We can offer a comprehensive range of advance performance belts having all in built properties of basic material, PTFE and fiberglass. The following superior characteristics of our belts result in increased productivity,longer life and lower operating cost.
Properties
Superior Release Non-stick surface
Operating temperature range -140℃ +260 ℃
Dimensionally stable
Good heat transfer, Energy saving
Light weight
Excellent anti-static;
Chemically inert
Non-flammable
Non-toxic
Anti- fatigue, durable, long service life;
PTFE fusing machine belt
1.seamless belt:
It is made of the cylindrical high-strength glass fiber or Kevlar (aramid) fabric
which is woven by knitting round loom,and is coated with PTFE emulsion.
The seamless belt completely overcomes the problems of jointed belts
such as bad running stability and off-tracking,etc.
The service life of PTFE seamless fusing machine belt is three times
longer than any other kind of fusing machine belt.
Advantages of PTFE coated seamless belt: Stable running, long service life.
Disadvantages: High prices.
2, Jointed fusing machine belt:
Usually with black color, jointed with F46 film.
Advantages: Low prices.
Disadvantages: Low intensity, easy deviation, short service life of usually 3 months.
3, double-layer fusing machine belt:
Advantages: High strength, long service life, without deviation.
We can also make antistatic fusing machine belt according to customers' requirements.
|
Hashima Seamless fusing Machine Belt sizes:
Item No. |
Size(mm) |
HP-220K(upper) |
220*1550 |
HP-220K(lower) |
220*1830 |
HP-220K-ii(lower) |
220*2230 |
HP-330K(upper) |
330*1550 |
HP-330K(lower) |
330*1830 |
HP-450K(upper) |
450*1550 |
HP-450K(lower) |
450*1830 |
Oshima Seamless Fusing Machine Belt sizes:
Item No. |
Size |
L(upper) |
L(lower) |
S(upper) |
S(lower) |
S(total) |
450F(GS) |
460 |
1540 |
1830 |
0.71 |
0.84 |
1.55 |
600F |
625 |
1400 |
2000 |
0.88 |
1.25 |
2.13 |
60LN |
625 |
1800 |
2400 |
1.13 |
1.50 |
2.63 |
60LD |
610 |
2450 |
2450 |
1.49 |
1.49 |
2.99 |
90LD |
910 |
2450 |
2450 |
2.23 |
2.23 |
4.46 |
