| Place of Origin: | Jiangsu China |
|---|---|
| Brand Name: | SPEK |
| Certification: | SGS |
| Model Number: | Seamless belts |
| Minimum Order Quantity: | 1pc |
| Price: | 30~800usd |
| Packaging Details: | standard export cartons |
| Delivery Time: | 2-10working days |
| Supply Ability: | 3000pcs per week |
| Material: | PTFE Coated Glassfiber Seamless Belt | Thickness: | 0.38~0.45mm |
|---|---|---|---|
| Color: | Black | Ability: | Heat Resistant Stability |
| Temp Resistance: | -140 -+ 260 | Application: | For Hashima, Oshima,Veit, NGAI And So On |
| Belt Width: | Upto 5000mm Can Be Supplied | Belt Length: | Upto 6000mm Can Be Supplied |
| Feature: | Chemical Resistance,flex Fatigue Resistance | Advantage: | Non-stick,without Joint, Long Using Life |
| High Light: | Anti static coated glassfiber,coated glassfiber conveyor belts,heat resistant coated cloth |
||

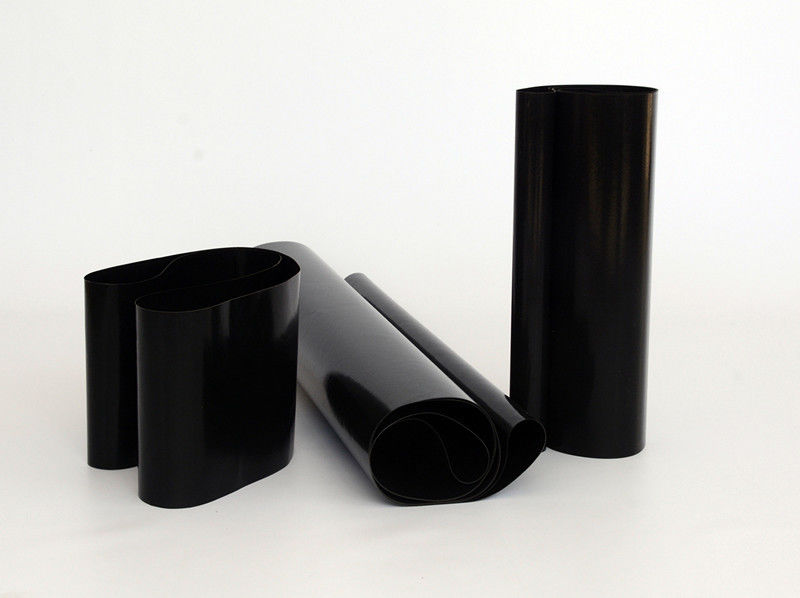

PTFE seamless belt is specially weaved to be seamless , and coated with PTFE().
PTFE conveyor belts are used primarily because of their special properties,such as temperature resistance, light weight, non-stick, and chemical resistance.

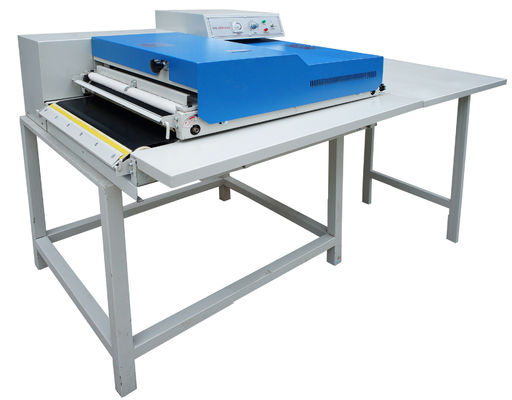

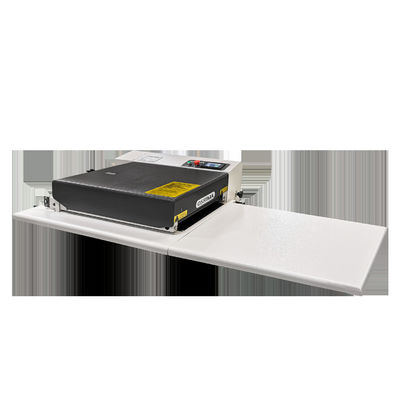

PTFE fusing machine belt
1. seamless belt:
It is made of the cylindrical high-strength glass fiber or Kevlar (aramid) fabric
which is woven by knitting round loom,and is coated with PTFE emulsion.
The seamless belt completely overcomes the problems of jointed belts
such as bad running stability and off-tracking,etc.
The service life of PTFE seamless fusing machine belt is three times
longer than any other kind of fusing machine belt.
Advantages of PTFE coated seamless belt: Stable running, long service life.
Disadvantages: High prices.
2, Jointed fusing machine belt:
Usually with black color, jointed with F46 film.
Advantages: Low prices.
Disadvantages: Low intensity, easy deviation, short service life of usually 3 months.
3, double-layer fusing machine belt:
Advantages: High strength, long service life, without deviation.
We can also make antistatic fusing machine belt according to customers' requirements.
Hashima Seamless fusing Machine Belt sizes:
| Item No. | Size(mm) |
| HP-220K(upper) | 220*1550 |
| HP-220K(lower) | 220*1830 |
| HP-220K-ii(lower) | 220*2230 |
| HP-330K(upper) | 330*1550 |
| HP-330K(lower) | 330*1830 |
| HP-450K(upper) | 450*1550 |
| HP-450K(lower) | 450*1830 |
Oshima Seamless Fusing Machine Belt sizes:
| Item No. | Size | L(upper) | L(lower) | S(upper) | S(lower) | S(total) |
| 450F(GS) | 460 | 1540 | 1830 | 0.71 | 0.84 | 1.55 |
| 600F | 625 | 1400 | 2000 | 0.88 | 1.25 | 2.13 |
| 60LN | 625 | 1800 | 2400 | 1.13 | 1.50 | 2.63 |
| 60LD | 610 | 2450 | 2450 | 1.49 | 1.49 | 2.99 |
| 90LD | 910 | 2450 | 2450 | 2.23 | 2.23 | 4.46 |
