Non Flammable PTFE Fiberglass Fabric Fusing Machine Belt Chemical Resistance

Basic Information
Place of Origin: Jiangsu China
Brand Name: SPEK
Certification: SGS
Model Number: Seamless belts
Minimum Order Quantity: 1pc
Price: 30~800usd
Packaging Details: standard export cartons
Delivery Time: 2-10working days
Supply Ability: 3000pcs per week
Detail Information
Material: PTFEcoated Glassfiber Seamless Belt Thickness: 0.35~0.45mm
Color: Black , Brown Ability: Heat Resistant Stability
Temp Resistance: -140 -+ 260 Application: For Hashima, Oshima,Veit, NGAI And So On
Belt Width: Upto 5000mm Can Be Supplied Belt Length: Upto 6000mm Can Be Supplied
Feature: Chemical Resistance Place Of Origin: Jiangsu,China
High Light:

Non flammable Fusing Machine Belt

,

seamless PTFE fiberglass fabric

,

chemical resistance Fusing Machine Belt


Product Description

PTFE  seamless  belt is typically used in the garment industry for fusing machine.

PTFE seamless belt is specially weaved to be seamless, and coated with PTFE(Teflon).

PTFE conveyor belts are used primarily because of their special properties,such as temperature resistance, light weight, non-stick, and chemical resistance.

Properties
  • Superior Release Non-stick surface
  • Operating temperature range -140℃ +260 ℃
  • Dimensionally stable
  • Good heat transfer, Energy saving
  • Light weight
  • Excellent anti-static;
  • Chemically inert
  • Non-flammable
  • Non-toxic
  • Anti- fatigue, durable, long service life;



PTFE fusing machine belt

1. seamless belt:

It is made of the cylindrical high-strength glass fiber or Kevlar (aramid) fabric

which is woven by knitting round loom,and is coated with PTFE emulsion.

The seamless belt completely overcomes the problems of jointed belts

such as bad running stability and off-tracking,etc.

The service life of PTFE seamless fusing machine belt is three times

longer than any other kind of fusing machine belt.

Advantages of PTFE coated seamless belt: Stable running, long service life.

Disadvantages: High prices.



2, Jointed fusing machine belt:



Usually with black color, jointed with F46 film.

Advantages: Low prices.

Disadvantages: Low intensity, easy deviation, short service life of usually 3 months.



3, double-layer fusing machine belt:



Advantages: High strength, long service life, without deviation.

We can also make antistatic fusing machine belt according to customers' requirements.



Hashima Seamless fusing Machine Belt sizes:

Item No. Size(mm)
HP-220K(upper) 220*1550
HP-220K(lower) 220*1830
HP-220K-ii(lower) 220*2230
HP-330K(upper) 330*1550
HP-330K(lower) 330*1830
HP-450K(upper) 450*1550
HP-450K(lower) 450*1830

Oshima Seamless Fusing Machine Belt sizes:

Item No. Size L(upper) L(lower) S(upper) S(lower) S(total)
450F(GS) 460 1540 1830 0.71 0.84 1.55
600F 625 1400 2000 0.88 1.25 2.13
60LN 625 1800 2400 1.13 1.50 2.63
60LD 610 2450 2450 1.49 1.49 2.99
90LD 910 2450 2450 2.23 2.23 4.46

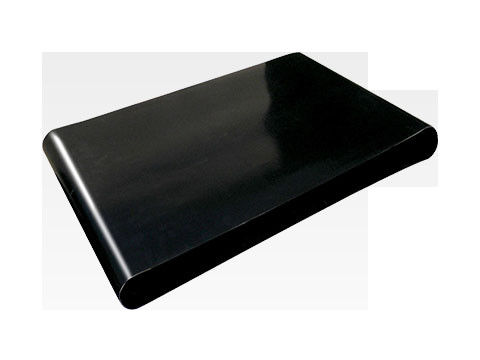

Non Flammable PTFE Fiberglass Fabric Fusing Machine Belt Chemical Resistance 0

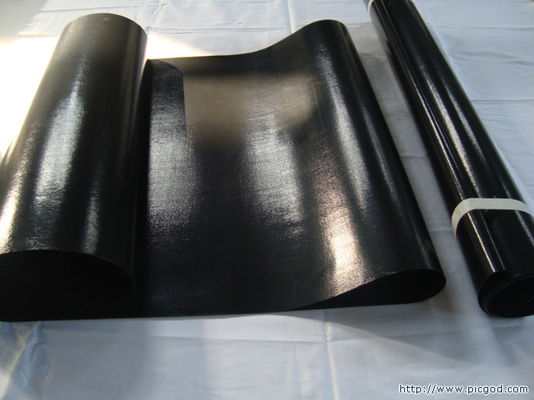

Non Flammable PTFE Fiberglass Fabric Fusing Machine Belt Chemical Resistance 1
