| Brand Name: | SPEK |
| MOQ: | 1pc |
| Price: | 100~1000usd |
| Delivery Time: | 2-10working days |

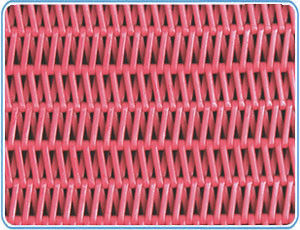

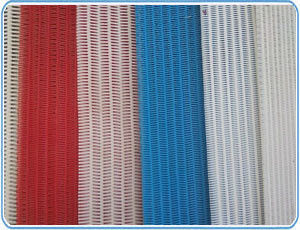

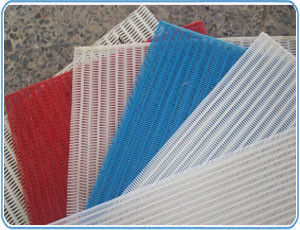

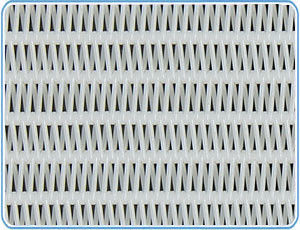

The feature of Polyester Filter Mesh Belt:
Sludge Dewatering Filter Belt Products are widely being used in urban sewage plants, paper mills, printing and dyeing plants, chemical plants, electroplating plants, pharmaceutical plants, food factories, ceramic factories, mining and other industries.
Range of application
· belt filter · belt filter.
· belt dryer · vacuum belt filter.
· textile finishing · drying of non-woven fabrics.
· disc or drum filter.
Our advantage:
Good mechanical stability, not easy to deform, wear resistant, easy to discharge slag, good water permeability and a variety of seams and sealing edges for customers to choose.
| Type |
Spiral loop width mm |
Filament diameter mm |
Tensile strength N/cm |
Weigth Kg/m² |
Thickness mm |
Air permeability m³/m²h |
CFM 127/pa |
|
|
Spiral ring mono filament mm |
Connection wire mm |
|||||||
| Super loop 09110 | 10 | 0.90 | 1.10 | 2300 | 1.64 | 3.03 | 20000 | 1250 |
|
Large loop 6890A |
8 | 0.68 | 0.90 | 2000 | 1.31 | 2.45 | 18000 | 1125 |
|
Medium loop 6890B |
7.2 | 0.68 | 0.90 | 2000 | 1.40 | 2.45 | 16000 | 1000 |
|
Small loop 5080 |
5.2 | 0.50 | 0.80 | 1800 | 1.0 | 1.87 | 15000 | 937 |
|
|
| Brand Name: | SPEK |
| MOQ: | 1pc |
| Price: | 100~1000usd |
| Packaging Details: | plastic bags |
The feature of Polyester Filter Mesh Belt:
Sludge Dewatering Filter Belt Products are widely being used in urban sewage plants, paper mills, printing and dyeing plants, chemical plants, electroplating plants, pharmaceutical plants, food factories, ceramic factories, mining and other industries.
Range of application
· belt filter · belt filter.
· belt dryer · vacuum belt filter.
· textile finishing · drying of non-woven fabrics.
· disc or drum filter.
Our advantage:
Good mechanical stability, not easy to deform, wear resistant, easy to discharge slag, good water permeability and a variety of seams and sealing edges for customers to choose.
| Type |
Spiral loop width mm |
Filament diameter mm |
Tensile strength N/cm |
Weigth Kg/m² |
Thickness mm |
Air permeability m³/m²h |
CFM 127/pa |
|
|
Spiral ring mono filament mm |
Connection wire mm |
|||||||
| Super loop 09110 | 10 | 0.90 | 1.10 | 2300 | 1.64 | 3.03 | 20000 | 1250 |
|
Large loop 6890A |
8 | 0.68 | 0.90 | 2000 | 1.31 | 2.45 | 18000 | 1125 |
|
Medium loop 6890B |
7.2 | 0.68 | 0.90 | 2000 | 1.40 | 2.45 | 16000 | 1000 |
|
Small loop 5080 |
5.2 | 0.50 | 0.80 | 1800 | 1.0 | 1.87 | 15000 | 937 |
