Blue Polyester Antistatic MDF Mesh Belts Polyester Conveyor Belt

Basic Information
Place of Origin: Hebei,China
Brand Name: SPEK
Certification: ISO901-2000
Minimum Order Quantity: 1pc
Price: 100~1000usd
Packaging Details: plastic bags
Delivery Time: 3-10working days
Supply Ability: 20000square meters
Detail Information
Material: 100% Polyester Usage: Filter And Drying
HS Code: 59100000 Type: Plain
Techniques: Woven Thickness: 0.5-2mm
Color: White, Blue, Red Hole Shape: Square
Package: Plastic Woven Bag
High Light:

Polyester Antistatic MDF Mesh Belts


2mm MDF Mesh Belts


MDF Mesh Sludge Dewatering Belt

Product Description

Polyester antistatic filter cloth/polyester anti-static filter fabric

Antistatic principle: When the equipments which are using polyester fabric are running in high speed, it can produce friction electrostatic. There is a conductive fiber through the polyester anti-static fabrics which can release the friction electrostatic, thus play a role in anti-static.

Polyester Anti-Static Fabrics are mainly used in environmental protection, high density board making, rubber and chemical industry.


Product Description

1. Advantages:
High quality
Excellent filtration function
Good stripping, high stability, not easy deformation
Smooth surface
Clogging protection and durable

2 .Application:
Fliter & Dryer
Juice squeeze
Paper pulp
Mine tailings disposal
Belt filter cloth mainly matching with belt type filter press, vacuum rubber belt filter and hirizontal vacuum belt filter.

3 Why choose us?
Computerized weaving process
1 Annual maximal weaving capacity:from 250 000 up to 500 000 m.
2 Heavy looms from 4 up to 13 m wide.

Controlled thermostabilisation process
1 Capacity: width (10 m) - length (160 m)
2 Process whole trace ability

Neat fishing
1 Final cut accurately matching the width required.
2.Belts seams: clipper (hooks) - loop - weaved
3 Glued edges
4 Guiding profiles

Laboratory test
1 Air permeability measurement
2 Mechanical resistance measurement.
3 Electron microscope



Filament diameter


Density /root


Tensile strength









  m³/ m²h








 warp weft  warp  weft  surface  joint
31505 0.40 0.50 33 9 1600 900 0.80 1.30 2976 186 1170
14804 0.80 0.80 14.8 6.8 2000 900 2.2 2.2 4000 250 1740
14804 0.65 0.80 14.8 7.2 2000 900 1.6 1.95 7500 460 2850

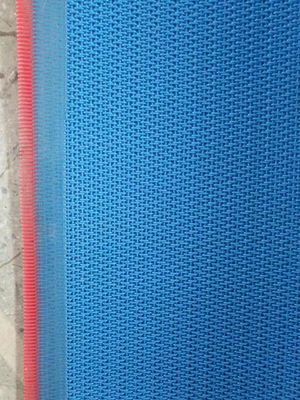

                                                                    Blue Polyester Antistatic MDF Mesh Belts Polyester Conveyor Belt 0

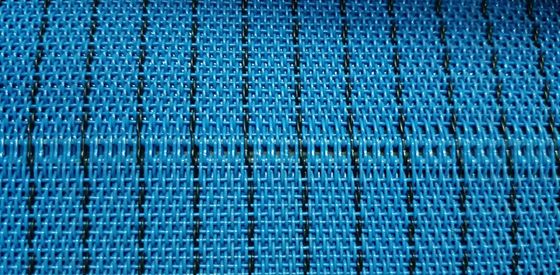

 Blue Polyester Antistatic MDF Mesh Belts Polyester Conveyor Belt 1

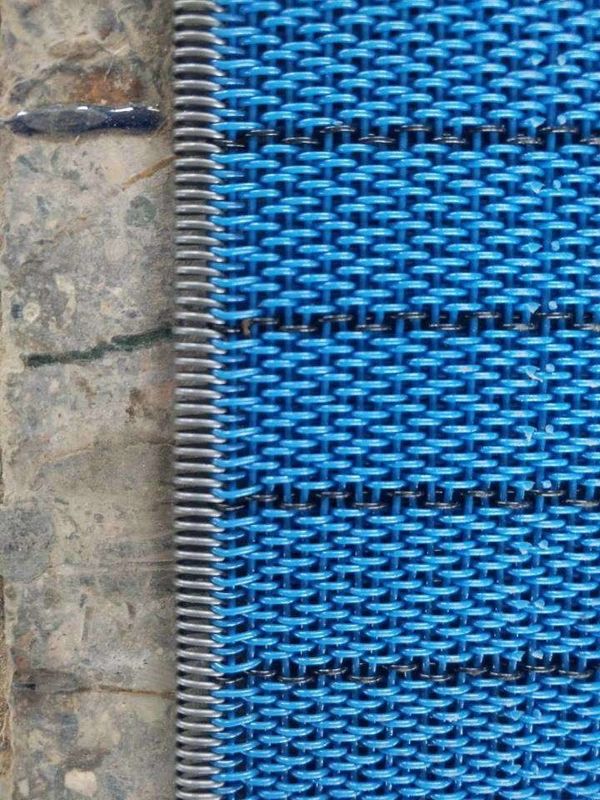

Blue Polyester Antistatic MDF Mesh Belts Polyester Conveyor Belt 2
