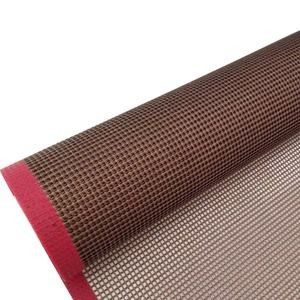

Non Stick Open Mesh For Vacuum Laminate PTFE Conveyor Belt

Basic Information
Place of Origin: Jiangsu China
Brand Name: SPEK
Minimum Order Quantity: 1pc
Price: 20~600usd
Packaging Details: bags +cartons
Delivery Time: 2-10working days
Detail Information
Thickness: 0.55mm Specification: 1*1mm
Working Temperature: -70° To 260 ° Max Width: 4000mm
Transport Package: Bags+cartons Weave Type: Plain Woven
Fiberglass Type: E-glass Alkali Content: Alkali Free
Color: Black Or Brown Application: Heat Insulation Materials, Heat Resistant
High Light:

Non Stick PTFE Conveyor Belt

,

Open Mesh PTFE Conveyor Belt

,

Laminate plain woven Conveyor Belt


Product Description

Product Description
PTFE mesh conveyor belts are made from fine glass fiber or Kevlar as basis weaving material, coated with excellent PTFE resin.
Features of PTFE mesh conveyor belts:
1) Good temperature tolerance, 24 working temperature -70 to 260 celsius degree.
2) Chemical resistance - It can resist all most of chemical medicines.
3) Non-stick -It can easily remove all kinds of adhesives such as resin, paint and chemical medicine, easy to clean.
4) Good flex fatigue resistance - it has high tensile strength and excellent flex fatigue resistance. It's better for mall wheels
5) Permeability - it can avoid wasting heat and improve drying efficiency for it's permeability.

Applications of PTFE mesh conveyor belts.
1) Drying machine for non-woven textile, textile printing, silk-printing and dyeing machine.
2) Shrinking machine for garment fabric, high-requency and UV dryer.
3) Conveyor belt for hot - air dryer, various of food baking, quick - frozen machines.
4) Oiling machin for paper glazing and waxing, plant engineering.
5) Seperating sheet for hardboard production etc.
Main capability and characteristics:
a. Temperature resistance
It can continuously works at -70ºC-260ºC,the highest temperature can reach to 360ºC.
b. Permeability
It can reduce the wasting of heat source and improve the drying efficiency.
c. Chemical resistance
It can resist corrosion to most of chemicals and solvent
d. Anti-sticking
It can be easily to clear all kinds of adhesive stuff, such as resin, paint and chemicals.
e. Flex fatigue resistance
It has high tensile strength and excellent flex fatigue resistance. It can be used in the small wheels.
Application range:
1. Used as drying conveyor belts in textile., printing and dyeing fields, such as printing drying conveyor belt, dyeing cloth drying belt, abric shrink drying belt, non-woven drying belt etc.
2. Used as drying conveyor belts in silk-screen printing machines, such as loose dryer, offset printing presses, UV series light solid machine.
3. Used as conveyor belts for all the situation that need thermal processing transmission conditions, such as cycle drying, microware drying, freezing and thawing out all kinds of food, heat-shrinking packaging goods, removing moisture for articles, quick drying flux ink etc.




ItemMesh SizematerialThicknessWeightTemperature resistanceMax WidthTensile Strength
S6011x1mmfiberglass0.5mm370g/m²-70-260℃4000mm310/290N/cm
S6022x2mmfiberglass0.7mm450g/m²-70-260℃4000mm350/310N/cm
S6034x4mmfiberglass
(black)
1.0mm400g/m²-70-260℃4000mm390/320N/cm
S6044x4mmfiberglass1.0mm450g/m²-70-260℃4000mm390/320N/cm
S6074x4mmKevlar + fiberglass1.2mm600g/m²-70-260℃4000mm895/370N/cm
S6084x4mmfiberglass1.2mm580g/m²-70-260℃4000mm560/360N/cm
S6104x4mmKevlar1.0mm500g/m²-70-260℃4000mm900/600N/cm
S6124x4mmfiberglass
(black)
1.0mm550g/m²-70-260℃4000mm395/370N/cm
S61310x10mmfiberglass1.2mm450g/m²-70-260℃4000mm360/300N/cm
S6140.5x1mmfiberglass0.5mm420g/m²-70-260℃4000mm310/290N/cm
S6152x2.5mmfiberglass0.9mm600g/m²-70-260℃4000mm390/320N/cm



Non Stick Open Mesh For Vacuum Laminate PTFE Conveyor Belt 0
Non Stick Open Mesh For Vacuum Laminate PTFE Conveyor Belt 1Non Stick Open Mesh For Vacuum Laminate PTFE Conveyor Belt 2
