Plastic PTFE Mesh Conveyor Belt With Edge Reinforcement

Basic Information
Place of Origin: Jiangsu China
Brand Name: SPEK
Minimum Order Quantity: 1pc
Price: 20~600usd
Packaging Details: bags +cartons
Delivery Time: 2-10working days
Detail Information
Color: Brown / Black Specification: 1*1mm 2*2mm 4*4mm 10*10mm
Working Temperature: -70° To 260 ° Max Width: 3300mm
Processing Service: Edge Reinforcement Weave Type: Plain Woven
Fiberglass Type: E-glass Alkali Content: Alkali Free
Feature: Heat Resistant Application: Silk Screen Printing Tunnel Dryer
High Light:

3300mm PTFE mesh conveyor belt


edge reinforcement PTFE mesh conveyor belt


edge reinforcement plastic conveyor belt

Product Description

 (PTFE) Teflon Coated Fiberglass Belt For T-Shirt Printing Conveyor Dryer
Product Description
PTFE Conveyor Belts are specifically engineered with the mechanical strength needed for the fusing and laminating industries. Its non-stick surface, thermal transfer and high temperature resistance characteristics ensure the flow of woven and non-woven materials through the fusing and lamination process.

Main capability and characteristics:
1). It can be used under the temperature of -196℃ to 300℃, which has the capability of weather resistant and age resistant. Under practical situation of high temperature of 250℃ for 200 days, not only the intensity will not decrease, the weight will not reduce; if put it under the high temperature of 350 ℃ for 120 hours, the weight only decreased by about 0.6%; under the situation of -180 ℃, it will not chap and keep the original pliability;
2). Hardly to adhere any material; it is easy to wash away the blot or other dust such as resin, coating material, etc.
3). Chemical corrosion resistant, it could resist acid, alkali, aqua fortis and various kinds of organic liquid corrosion;
4). Low ratio of friction (0.05-0.1), it is the best choice of non-oil lubricator; 5). Light piercing ratio is 6-13%;
6). High capability of insulation (small permittivity: 2.6, the tangent is lower than 0.0025), ultraviolet resistance, static proofing;
7). Good dimension stability (the ratio of extending is lower than 0.5%), High intensity, good mechanical capability;
8). Capability of medicament resistance and non-poison, almost to resisting all kinds of medicament;

9). Fireproofing and flame resisting.

Item Mesh Size material Thickness Weight Temperature resistance Max Width Tensile Strength
S601 1x1mm fiberglass 0.5mm 370g/m² -70-260℃ 4000mm 310/290N/cm
S602 2x2mm fiberglass 0.7mm 450g/m² -70-260℃ 4000mm 350/310N/cm
S603 4x4mm fiberglass
1.0mm 400g/m² -70-260℃ 4000mm 390/320N/cm
S604 4x4mm fiberglass 1.0mm 450g/m² -70-260℃ 4000mm 390/320N/cm
S607 4x4mm Kevlar + fiberglass 1.2mm 600g/m² -70-260℃ 4000mm 895/370N/cm
S608 4x4mm fiberglass 1.2mm 580g/m² -70-260℃ 4000mm 560/360N/cm
S610 4x4mm Kevlar 1.0mm 500g/m² -70-260℃ 4000mm 900/600N/cm
S612 4x4mm fiberglass
1.0mm 550g/m² -70-260℃ 4000mm 395/370N/cm
S613 10x10mm fiberglass 1.2mm 450g/m² -70-260℃ 4000mm 360/300N/cm
S614 0.5x1mm fiberglass 0.5mm 420g/m² -70-260℃ 4000mm 310/290N/cm
S615 2x2.5mm fiberglass 0.9mm 600g/m² -70-260℃ 4000mm 390/320N/cm

Features of PTFE mesh conveyor belts:
1) Good temperature tolerance, 24 working temperature -70 to 260 celsius degree.
2) Chemical resistance - It can resist all most of chemical medicines.
3) Non-stick -It can easily remove all kinds of adhesives such as resin, paint and chemical medicine, easy to clean.
4) Good flex fatigue resistance - it has high tensile strength and excellent flex fatigue resistance. It's better for mall wheels
5) Permeability - it can avoid wasting heat and improve drying efficiency for it's permeability.
Applications of PTFE mesh conveyor belts.
1) Drying machine for non-woven textile, textile printing, silk-printing and dyeing machine.
2) Shrinking machine for garment fabric, high-requency and UV dryer.
3) Conveyor belt for hot - air dryer, various of food baking, quick - frozen machines.
4) Oiling machin for paper glazing and waxing, plant engineering.
5) Seperating sheet for hardboard production etc.

Application range:
1. Used as drying conveyor belts in textile., printing and dyeing fields, such as printing drying conveyor belt, dyeing cloth drying belt, abric shrink drying belt, non-woven drying belt etc.
2. Used as drying conveyor belts in silk-screen printing machines, such as loose dryer, offset printing presses, UV series light solid machine.
3. Used as conveyor belts for all the situation that need thermal processing transmission conditions, such as cycle drying, microware drying, freezing and thawing out all kinds of food, heat-shrinking packaging goods, removing moisture for articles, quick drying flux ink etc.

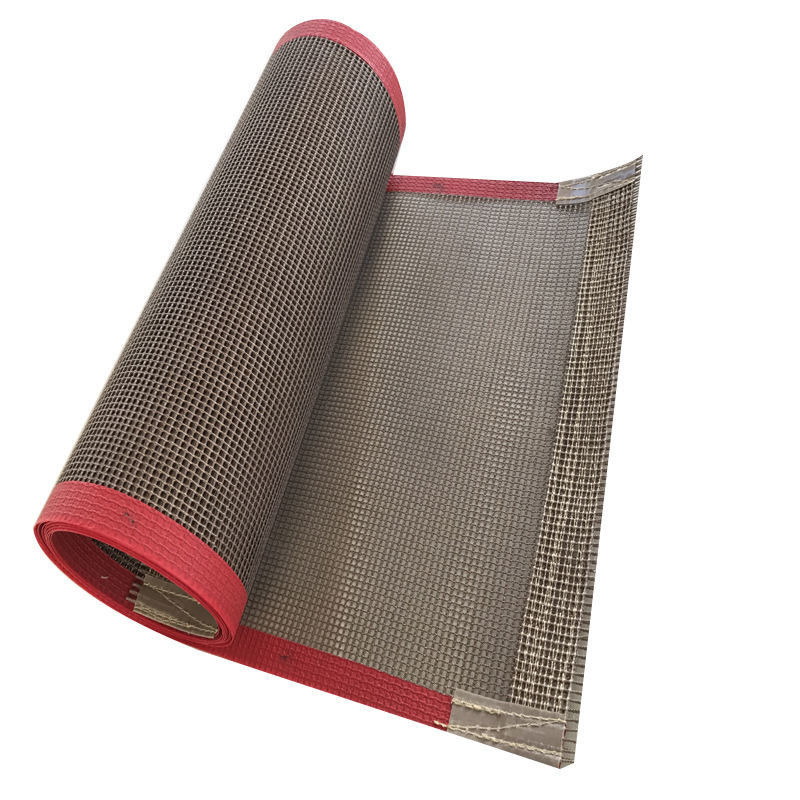

Plastic PTFE Mesh Conveyor Belt With Edge Reinforcement 0
                                               Plastic PTFE Mesh Conveyor Belt With Edge Reinforcement 1

Plastic PTFE Mesh Conveyor Belt With Edge Reinforcement 2

Plastic PTFE Mesh Conveyor Belt With Edge Reinforcement 3

Plastic PTFE Mesh Conveyor Belt With Edge Reinforcement 4

Plastic PTFE Mesh Conveyor Belt With Edge Reinforcement 5

Plastic PTFE Mesh Conveyor Belt With Edge Reinforcement 6
