Home > Products> Silicone Coated Fiberglass Fabric> Elastic Silicone Rubber Coated Fiberglass Fabric Heat Resistant

Elastic Silicone Rubber Coated Fiberglass Fabric Heat Resistant

Basic Information

Place of Origin:	Jiangsu China
Brand Name:	SPEK
Certification:	SGS
Model Number:	TS580

Minimum Order Quantity:	1M2
Price:	30~800usd
Packaging Details:	packed in cartons
Delivery Time:	2-10working days
Supply Ability:	1000meters per week

Get Best Price Contact Now

Detail Information

Materail:	Silicone Coated Glassfiber Farbic	Color:	Red, Grey,black, White
Max Width:	1500mm	Alkali Content:	Mdeium
Withstand Temperature:	-50°C To +230°C	Weave:	Plain Woven
Yarn Type:	E-glass,C-Glass	Coating:	Double Sides Coating,one Side Coating
High Light:	Elastic Coated Fiberglass Fabric , Silicone Rubber Coated Fiberglass Fabric , SGS Heat Resistant Silicone Coated Fabric

Product Description

Heat Resistance And Good Elasticity Silicone Rubber Coated Fiberglass Fabric

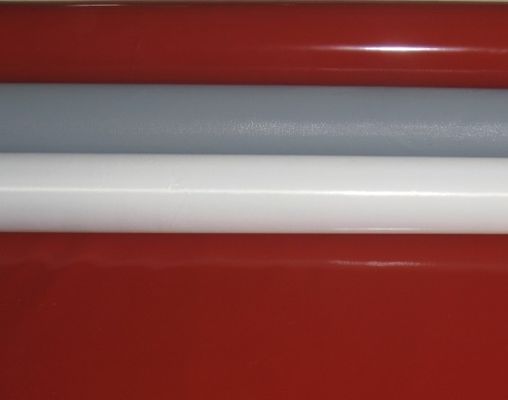

Silicone coated fiberglass fabric has quite similar characteristics to those of PTFE coated fiberglass fabric.But they are more flexible,very non-stick,non-slip surface and more tear resistance. These fabric are available coated on one side and both side in red, gray, black etc color available in 0.1mm to 3mm thickness.

Properties

Superior Release Non-stick surface
High temp resistant up to 230째C
Excellent release properties
Superior abrasion resistance
Good heat insulation
Good chemical resistance
Good dielectric properties
Good weather ability

Silicone fiberglass fabric applications:

Electric insulation: Silicon coated fiberglass fabric features high grade of electric insulation and bear a load of high voltage. It fits for making products like insulation cloth and sleeves etc.

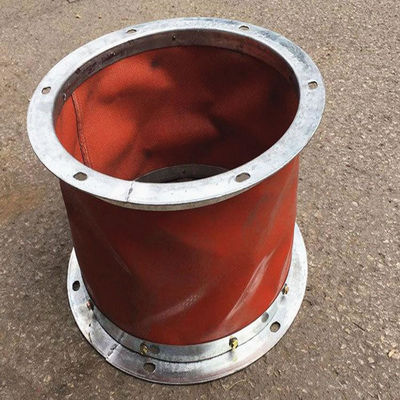

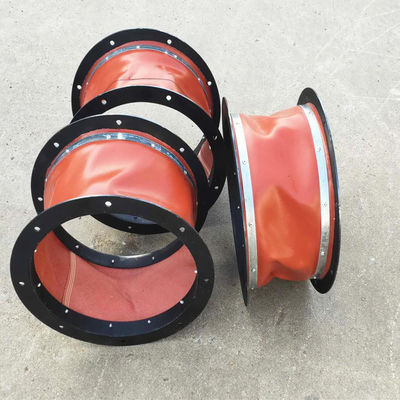

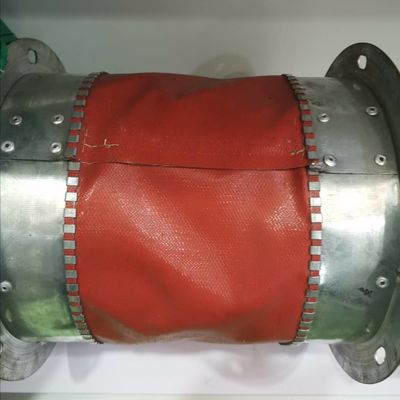

Non-metallic compensator: silicone fiberglass fabric could be used as pipeline flexible coupling, non-metallic compensator helps to avoid damage caused by heat expansion and cold contraction. This membrane material specially fit for use in industries of petroleum, chemical engineering, cement, iron and steel and energy sources due to its special features of temperature resistance, anti-corrosion, anti-aging, and good elasticity and toughness.
Anti-corrosion sector: silicone fiberglass fabric is good to be used as inner and outer anti-corrosion layer featuring excellent corrosion resistance, temperature resistance and high strength. It proves to be an ideal anti-corrosion material.
Others: Apart from above application, silicone fiberglass fabric can also be used as sealing material, temperature resistant and anti-corrosion conveyer belt and packaging material.

Styles and Specifications:

Item	Thickness	Breaking Strength (N/50mm)	Bursting strength (Mpa)	Flammability	Width	Colour
TS515	0.15mm	1500/1200	2.0	≤25%	0-1250	White
TS518	0.18mm	1600/1300	2.0	≤25%	0-1250	White/red
TS525	0.25mm	1800/1500	2.1	≤25%	0-1250	White/red/black
TS535	0.35mm	1900/1550	2.2	≤25%	0-1250	White/red/black
TS540	0.40mm	2000/1600	2.2	≤25%	0-1500	White/red/black
TS550	0.50mm	2200/1800	2.3	≤25%	0-1500	White/red/black
TS560	0.60mm	2400/2200	2.4	≤25%	0-1500	White/red/black
TS570	0.70mm	2500/2300	2.4	≤25%	0-1500	White/red/black
TS580	0.80mm	2600/2400	2.5	≤25%	0-1500	White/red/black
TS590	0.90mm	2800/2600	2.5	≤25%	0-1500	White/red/black
TS5100	1.00mm	3000/2800	2.6	≤25%	0-1500	White/red/black
TS5120	1.20mm	3400/3000	2.5	≤25%	0-1500	White/red/black
TS5150	1.50mm	3700/3300	2.3	≤25%	0-1500	White/red/black
