High Temperature Ptfe Coated Glass Fibre Fabric Chemical Resistance

Basic Information
Place of Origin: Hebei,China
Brand Name: SPEK
Model Number: S9025AJ
Minimum Order Quantity: 1M2
Price: 30~800usd
Packaging Details: cartons or pallets
Delivery Time: 2-10working days
Supply Ability: 100000 square meters per month
Detail Information
Thickness: 0.25mm Max Width: 1200mm
Weave Type: Plain Woven Yarn Type: E-glass
Alkali Content: Alikali Free Working Temperature: -140-260℃
Color: Black, Brown, Milk Brown,or Customized Surface Treatment: PTFE Coated
High Light:

fiberglass woven fabric


ptfe glass mesh fabric

Product Description

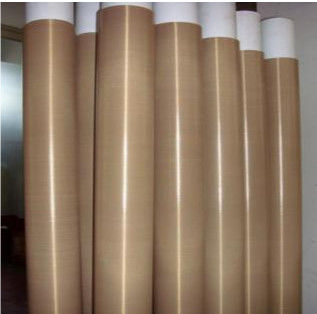

PTFE Coated Fiber Glass Fabrics

PTFE itself is a highly versatile product with well know remarkable properties and fiberglass is well known as an excellent material in terms of its high temperature resistance and dimensionally stability. Combination of these two materials gives one product of practically unsurpassed utility and value with following properties:

  • High release from sticky materials 'Non stick' smooth surface
  • Operating temperature range -140  to +260
  • Excellent chemical resistance
  • High electrical insulative and dielectric properties
  • Dimensional stabilities under heat and pressure
  • Low electrical losses
  • Mildew and fungus resistance
  • Ultra-Violet, infra-Red, Micro-wave, radio frequency resistance

Selected woven glass fabrics are coated with PTFE resin. It is available with a surface profile that ranges from super smooth with a high PTFE content to one that is textured. It can be produced with a controlled porosity or with special electrical characteristics. It is utilized in sheet form, in slitted rolls, fabricated pieces and as the base material for process conveyor belts.


Higher width fabric is also available on request.
Item Color Thickness Max Width Weight Tensile Strength Temperature resistance
S908AJ brown 0.08mm 1.25m 165g/㎡ 550/450N/5cm -140~260℃
S908BJ black 0.08mm 1.25m 170g/㎡ 550/450N/5cm -140~260℃
S913AJ brown 0.13mm 1.25m 260g/㎡ 1100/1000N/5cm -140~260℃
S913BJ black 0.13mm 1.25m 275g/㎡ 1100/1000N/5cm -140~260℃
S915AJ brown 0.15mm 1.25m 380g/㎡ 1200/1000N/5cm -140~260℃
S918AJ black 0.18mm 1.25m 395g/㎡ 1800/1700N/5cm -140~260℃
S925AJ brown 0.25mm 3.20m 490g/㎡ 2100/1800N/5cm -140~260℃
S925BJ black 0.25mm 3.20m 510g/㎡ 2100/1800N/5cm -140~260℃
S935AJ brown 0.35mm 3.20m 660g/㎡ 2600/2300N/5cm -140~260℃
S935BJ black 0.35mm 3.20m 680g/㎡ 2600/2300N/5cm -140~260℃
S940AJ milk white 0.40mm 3m 780g/㎡ 3000/2500N/5cm -140~260℃
S940BJ black 0.40mm 3m 820g/㎡ 3000/2500N/5cm -140~260℃
S965AJ milk white 0.65mm 3m 1150g/㎡ 4400/4000N/5cm -140~260℃
S990AJ milk white 0.90mm 3m 1550g/㎡ 6000/5000N/5cm -140~260℃
S990BJ black 0.90mm 3m 1650g/㎡ 6000/5000N/5cm -140~260℃
