PTFE Coated Fiberglass Conveyor Belt Jointing / Splices Easy To Clean

Basic Information
Place of Origin: Jiangsu China
Brand Name: SPEK
Certification: SGS
Minimum Order Quantity: 1pc
Price: 20~600usd
Packaging Details: Standard export cartons
Delivery Time: 2-10working days
Supply Ability: 100000square meters per week
Detail Information
Material: Glassfiber Open Mesh Max Width: 4000mm
Type: Flat Belt Thickness: 1mm
Tensile Strength: 390/320N/cm Heat Resistance: ~70℃~+260℃
High Light:

high temp conveyor belt


ptfe conveyor belts

Product Description

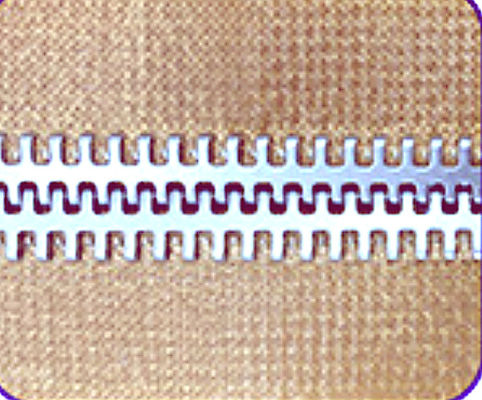

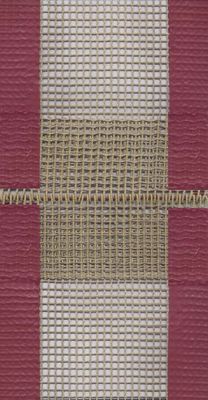

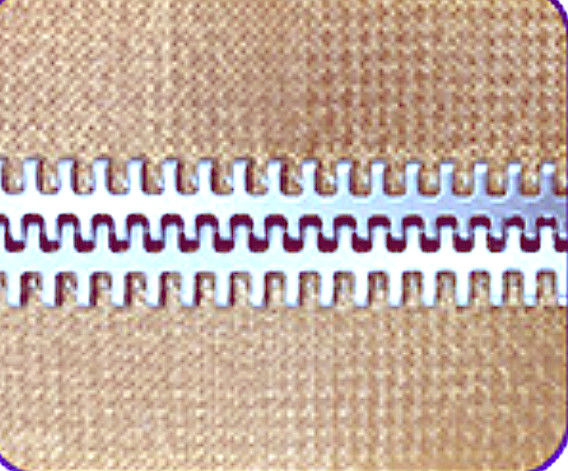

The right choice of the Splice decides the perfect performance of belts. Each Splice must be co-ordinate to the type of application of the belt.

Mahavir Corporation offers different variety of Splices for open mesh fabric belts which are Flexible and allows a good permeability, result in high level of controlled air flow through the belt



PTFE Coated Open Mesh Belt

We can supply a full range of open mesh belting products specifically for textile and screen printing dryers. Our open mesh Belts are widely used for drying of screen printed and dyed textiles at higher speed and higher temperature. Mesh size of 4 X 4 mm and 2 X 2 mm provide a high percentage of open surface area, creating maximum airflow and sufficient operation with minimum heat loss.Width and length stability of the belts are retain over full range of operating temperature and available in width upto 4 mtr.



PTFE open mesh belts are used in screen printing to transport imprinted materials through drying ovens and cooling chambers. These belts are long lasting and perform well over a wide range of operating temperatures.

Fiberflon belt fabrication department can supply a wide variety of splices and edge reinforcements in order to respond customer’s specific applications.

Following superior characteristics of our open mesh belts result in increased productivity, longer life and lower operating cost

  • Superior release Non-Stick surface
  • Operating temp. range -70 C to +260 C
  • Dimensionally stable
  • Resistance to most chemical and solvents
  • Non Flammable
  • Easy to Clean
  • Controlled Porosity


Styles and Specifications:

PTFE Coated Fiberglass Conveyor Belt Jointing / Splices Easy To Clean 0


Item Mesh Size material Thickness Weight Temperature resistance Max Width Tensile Strength
S601 1x1mm fiberglass 0.5mm 370g/m² -70-260℃ 4000mm 310/290N/cm
S602 2x2mm fiberglass 0.7mm 450g/m² -70-260℃ 4000mm 350/310N/cm
S603 4x4mm fiberglass
1.0mm 400g/m² -70-260℃ 4000mm 390/320N/cm
S604 4x4mm fiberglass 1.0mm 450g/m² -70-260℃ 4000mm 390/320N/cm
S607 4x4mm Kevlar + fiberglass 1.2mm 600g/m² -70-260℃ 4000mm 895/370N/cm
S608 4x4mm fiberglass 1.2mm 580g/m² -70-260℃ 4000mm 560/360N/cm
S610 4x4mm Kevlar 1.0mm 500g/m² -70-260℃ 4000mm 900/600N/cm
S612 4x4mm fiberglass
1.0mm 550g/m² -70-260℃ 4000mm 395/370N/cm
S613 10x10mm fiberglass 1.2mm 450g/m² -70-260℃ 4000mm 360/300N/cm
S614 0.5x1mm fiberglass 0.5mm 420g/m² -70-260℃ 4000mm 310/290N/cm
S615 2x2.5mm fiberglass 0.9mm 600g/m² -70-260℃ 4000mm 390/320N/cm


PTFE Coated Fiberglass Conveyor Belt Jointing / Splices Easy To Clean 1

PTFE Coated Fiberglass Conveyor Belt Jointing / Splices Easy To Clean 2PTFE Coated Fiberglass Conveyor Belt Jointing / Splices Easy To Clean 3
