Material: | Glassfiber Open Mesh | Max Width: | 4000mm |
---|---|---|---|
Thickness: | 1mm | Tensile Strength: | 390/320N/cm |
Color: | Black , Brown | Heat Resistance: | ~70℃~+260℃ |
Highlight: | heat resistant conveyor belt,ptfe conveyor belts |

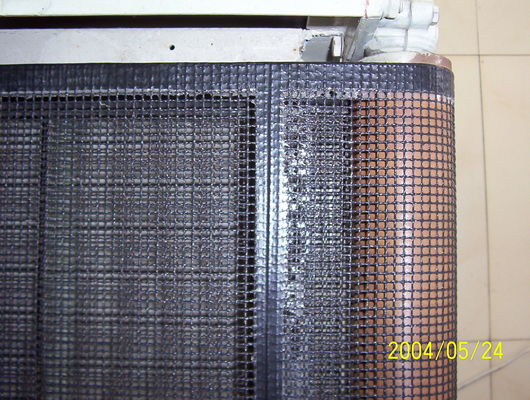

PTFE Coated Open Mesh Belt
We can supply a full range of open mesh belting products specifically for textile and screen printing dryers. Our open mesh Belts are widely used for drying of screen printed and dyed textiles at higher speed and higher temperature. Mesh size of 4 X 4 mm and 2 X 2 mm provide a high percentage of open surface area, creating maximum airflow and sufficient operation with minimum heat loss.Width and length stability of the belts are retain over full range of operating temperature and available in width upto 4 mtr.
Usage:

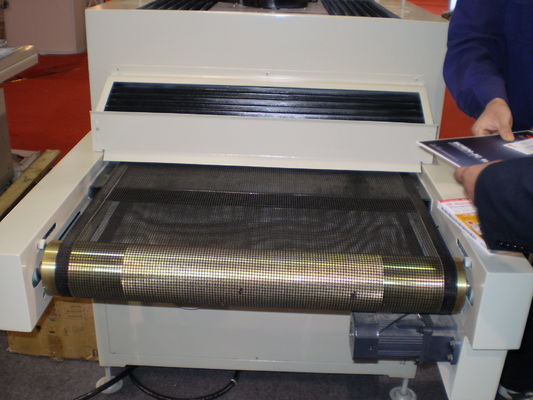

PTFE open mesh belts are used in screen printing to transport imprinted materials through drying ovens and cooling chambers. These belts are long lasting and perform well over a wide range of operating temperatures.
Fiberflon belt fabrication department can supply a wide variety of splices and edge reinforcements in order to respond customer’s specific applications.
Properties:
1. Outstanding temperature resistance (from -70ºC to +260ºC)
2. Resistant to corrosive agents
3. Low thermal mass
4. Controlled porosity
5. Superior non-stick surface, easy to clean
6. High dielectric strength
7. Dimensional stability
8. Resistance to UV, IR and HF
9. Non-toxic
10. Superior tracking
Styles and Specifications:
Item | Mesh Size | material | Thickness | Weight | Temperature resistance | Max Width | Tensile Strength |
S601 | 1x1mm | fiberglass | 0.5mm | 370g/m² | -70-260℃ | 4000mm | 310/290N/cm |
S602 | 2x2mm | fiberglass | 0.7mm | 450g/m² | -70-260℃ | 4000mm | 350/310N/cm |
S603 | 4x4mm | fiberglass (black) |
1.0mm | 400g/m² | -70-260℃ | 4000mm | 390/320N/cm |
S604 | 4x4mm | fiberglass | 1.0mm | 450g/m² | -70-260℃ | 4000mm | 390/320N/cm |
S607 | 4x4mm | Kevlar + fiberglass | 1.2mm | 600g/m² | -70-260℃ | 4000mm | 895/370N/cm |
S608 | 4x4mm | fiberglass | 1.2mm | 580g/m² | -70-260℃ | 4000mm | 560/360N/cm |
S610 | 4x4mm | Kevlar | 1.0mm | 500g/m² | -70-260℃ | 4000mm | 900/600N/cm |
S612 | 4x4mm | fiberglass (black) |
1.0mm | 550g/m² | -70-260℃ | 4000mm | 395/370N/cm |
S613 | 10x10mm | fiberglass | 1.2mm | 450g/m² | -70-260℃ | 4000mm | 360/300N/cm |
S614 | 0.5x1mm | fiberglass | 0.5mm | 420g/m² | -70-260℃ | 4000mm | 310/290N/cm |
S615 | 2x2.5mm | fiberglass | 0.9mm | 600g/m² | -70-260℃ | 4000mm | 390/320N/cm |
