High Temp PTFE Coated Fiberglass Fabric Wide Use For Construction

Basic Information
Place of Origin: Hebei,China
Brand Name: SPEK
Model Number: S9090AJ
Minimum Order Quantity: 1M2
Price: 30~800usd
Packaging Details: cartons or pallets
Delivery Time: 2-10working days
Supply Ability: 100000 square meters per month
Detail Information
Thickness: 0.90mm Max Width: 1200mm
Weave Type: Plain Woven Yarn Type: E-glass
Alkali Content: Alikali Free Working Temperature: -140-260℃
Color: Black, Brown, Milk Brown,or Customized Surface Treatment: PTFE Coated
High Light:

fiberglass woven fabric

,

ptfe coated glass fibre fabric


Product Description

Product Description

Based on high-quality fiberglass basic cloth, to coat PTFE resin then making it into various PTFE high temperature resistance clothes in different thickness and width.Fiberglass fabric coated with PTFE has various good capability and it is widely used in aircraft industry, paper manufacture, food, environment protection, print and painting, costume, chemical, glass manufacture, medical, electronic, insulation, building (basic cloth of topping frame), sharpener slice, machinery, etc.

Property:
1, Good temperature resistance
It can be used under the temperature of -140 to 260, which has the capability of weather resistant and age resistant. Under practical situation of high temperature of 250 for 200 days, not only the intensity will not decrease, the weight will not reduce; If putting it under the high temperature of 350 for 120 hours, the weight only decreased by about 0.6%; Under the situation of -180, it will not be chapped and keep the original pliability;
2. Non stickness,
Hardly to adhere any material; It is easy to wash away the blot or other dust such as resin, coating material, etc.
3. Chemical corrosion resistant
It could resist acid, alkali, aqua fortis and various kinds of organic liquid corrosion; And it almost to resisting all kinds of medicament.
4, Stable dimension, high intensity, elongation coefficient less 5%.
5, Low coefficient of friction and dielectric constant,good insulating ability.
Application:

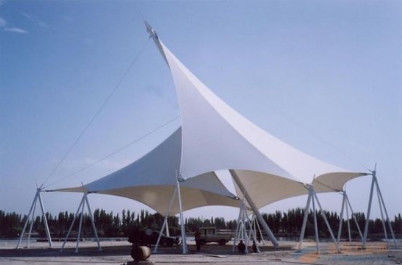

1) The designer can create large span extreme surface arc, cone, changeful iconic grand landscape shape of membrane structure buildings. Novel
PTFE fiberglass permanent architectural membrane material can be used in construction of large public activity place, stadiums, exhibition venues, and the lounge at the airport, etc.

2) PTFE membrane material is a kind of high polymer composite material, has excellent mechanical properties like outstanding patience, good winding strength, and reasonable structure design, is better than the strength of steel. PTFE membrane material construction usually can last more than 50 years.

3) Self-cleaning with superior performance of non-stick, decades later it still keep white surface as pervious.

4) As construction period is short, fabric cutting, seam welding, machining, can be made in one factory, which greatly reduce the construction work site and construction time.



Styles and Specifications:

Item Color Thickness Max Width Weight Tensile Strength Temperature resistance
S908AJ brown 0.08mm 1.25m 165g/㎡ 550/450N/5cm -140~260℃
S908BJ black 0.08mm 1.25m 170g/㎡ 550/450N/5cm -140~260℃
S913AJ brown 0.13mm 1.25m 260g/㎡ 1100/1000N/5cm -140~260℃
S913BJ black 0.13mm 1.25m 275g/㎡ 1100/1000N/5cm -140~260℃
S915AJ brown 0.15mm 1.25m 380g/㎡ 1200/1000N/5cm -140~260℃
S918AJ black 0.18mm 1.25m 395g/㎡ 1800/1700N/5cm -140~260℃
S925AJ brown 0.25mm 3.20m 490g/㎡ 2100/1800N/5cm -140~260℃
S925BJ black 0.25mm 3.20m 510g/㎡ 2100/1800N/5cm -140~260℃
S935AJ brown 0.35mm 3.20m 660g/㎡ 2600/2300N/5cm -140~260℃
S935BJ black 0.35mm 3.20m 680g/㎡ 2600/2300N/5cm -140~260℃
S940AJ milk white 0.40mm 3m 780g/㎡ 3000/2500N/5cm -140~260℃
S940BJ black 0.40mm 3m 820g/㎡ 3000/2500N/5cm -140~260℃
S965AJ milk white 0.65mm 3m 1150g/㎡ 4400/4000N/5cm -140~260℃
S990AJ milk white 0.90mm 3m 1550g/㎡ 6000/5000N/5cm -140~260℃
S990BJ black 0.90mm 3m 1650g/㎡ 6000/5000N/5cm -140~260℃

High Temp PTFE Coated Fiberglass Fabric Wide Use For Construction 0

High Temp PTFE Coated Fiberglass Fabric Wide Use For Construction 1High Temp PTFE Coated Fiberglass Fabric Wide Use For Construction 2
