PTFE Glass Fabrics With Pressure Sensitive Adhesive Teflon Tape

Basic Information
Place of Origin: Hebei,China
Brand Name: SPEK
Certification: SGS
Model Number: 0.35mm
Minimum Order Quantity: 1M2
Price: 2-50usd
Packaging Details: standard export cartons
Delivery Time: 2-10working days
Supply Ability: 3000m2 per week
Detail Information
Color: Tan Black Temp Resistance: -140 °C To + 260°C
Properties: Elongation,chemical Resistance,weather Resistance,electric Insulation,heat Resistance Thickness: 0.35mm
Standard Width: 12" 24" 36" 48" Thermal Expansion: Low Thermal Expansion: < 5%
Surface Resistance (Ω/m2): Insulative Coating Adhesion (N/5cm): 30
Warp Tongue Tear Strength (N): 30 Coated Fabric Thickness: 0.13mm
PTFE Coating %: 58% Adhesive Weight (g/m2): 55
Warp Tensile Strength (g/m2): 2500 Warp Tear Strength(N): 30
Slit Widths: 1/4" Width Or Wider In 1/16" Increments Bonded Surface: Metals, Plastics,glass, Rubber, Wood And Other Surface
High Light:

0.35mm PTFE Glass Fabrics

,

Teflon Tape PTFE Glass Fabrics

,

48in PTFE Coated Fiberglass Fabric


Product Description

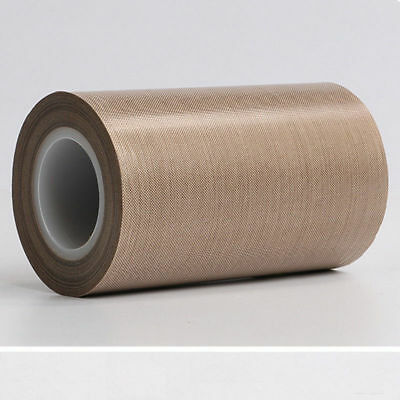

PTFE GLASS FABRICS WITH PRESSURE SENSITIVE ADHESIVE TEFLON TAPE

Teflon coated fiberglass fabric with Adhesive tape  PTFE coated fiberglass with one side coated silicon pressure sensitive adhesive tapes for temperature resistanceup to 260°C. This product offers excellent self adhering properties eliminating the need of secondary gluing procedures, it can be used on heat sealing equipment . It has a continuous service temperature of 260°C and can be put through a thermos setting cycle. This cycle is generally 4 hours long and requires the adhesive to be heated to 200°C. The tape has a crinkled yellow release liner for ease of removing which also ensures the adhesive is well protected prior to use.

  • Main features:
    * High temperature resistance (140℃ to 360℃)
    * Non-stick and easy to clean.
    * Food grade and non-toxic.
    * Light transmission rate up to 6% – 13%.
    * Good dimensional stability and high strength.
    * Good mechanical properties.
    * Corrosion-resistant, acid resistance, anti-aging.
    * High insulation properties (Low dielectric constant: 2.6; Tangent < 0.0025 ), anti-UV, anti-static.
    * Flame retardant.

                               PTFE Glass Fabrics With Pressure Sensitive Adhesive Teflon Tape 0




PTFE adhesive tapes application: they are most frequently used in heat sealing applications within the packaging industry for covering the sealing jaws in packaging machines.

.Impulse sealers

.Form and Fill sealers

.L Bar Sealers

.Side sealers

.Blister packs

Other applications include lining chutes, guide rails and everywhere you require a highly slippery surface.



                          PTFE Glass Fabrics With Pressure Sensitive Adhesive Teflon Tape 1



                          PTFE Glass Fabrics With Pressure Sensitive Adhesive Teflon Tape 2





                                PTFE Glass Fabrics With Pressure Sensitive Adhesive Teflon Tape 3

                               PTFE Glass Fabrics With Pressure Sensitive Adhesive Teflon Tape 4
