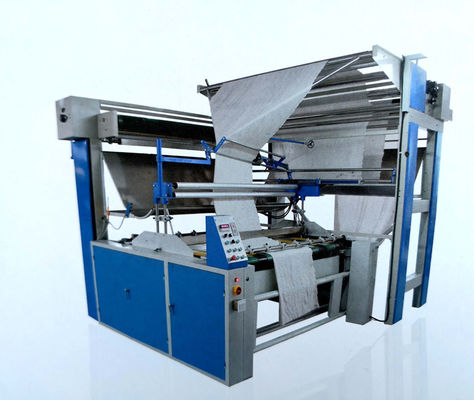

6KW Power Textile Finishing Machine Plaiting Machine With Infrared Activated Centering System

Basic Information
Place of Origin: Hangzhou,Zhejiang
Brand Name: LIANGYU
Model Number: LY-SDDP
Minimum Order Quantity: 1set
Price: 3000~100000usd
Packaging Details: Packed in standard export wooden case
Delivery Time: 30-50working days
Supply Ability: 50units/month
Detail Information
Certificate: CE Weight: 2200kgs
Power: 6KW Working Width: 1800-3400mm
Speed: 0-50m/min Cloth Type: All Kinds Of Fabric
Overall Dimensions: 4237*3125*2850mm Warranty: 12months
High Light:

fabric finishing machine

,

fabric winding machine


Product Description



Single & Double Plaiting Dual Purpose Plaiting Machine with Infrared activated centering system



Usage:This machine is perfect tool for plating the fabric in one meter/yard fold.

Fabric is double folded and plated at high speed. Accourate meter/yard folds in high speed fabric plaiting. Thus increases production,fast and easily handled, requiring one operator only,make fold of accurate one meter/yard, high speed ensure high production.



Features:

1. Infrared activated centering system ensures the alignment of fabric edge with in 3cm.

2. J-Box can significanty reduce the tension of the farbic during folding process.

3. Non-Contact inductive electronic counter to ensure count is accurate and reliable.

4. Inverter provides variable speed adjustment from 0-60 meter/min.

5. Clear and easy use control panel ensure the workers to operate more conveniently.

6. Front and rear emergency stop switch will increase operational safety.

7. Use flannel,rubber and needle plate for pressing plate according to the nature of fabric.

8. Hydraulic controlled (Server motor is optional) plaiting platform ensure accuracy of plaiting within 1cm.



Technical Specification:



Working Width 3200mm
Speed 0-50m/min
Plaiting Height 300mm
Electric Specs 6KW 3Phase-380V 50HZ
Dimension 4273mm*3125mm*2850mm
Weight 2200kg







6KW Power Textile Finishing Machine Plaiting Machine With Infrared Activated Centering System 0





6KW Power Textile Finishing Machine Plaiting Machine With Infrared Activated Centering System 1



6KW Power Textile Finishing Machine Plaiting Machine With Infrared Activated Centering System 2
