Polyester Spiral Dryer Sludge Dewatering Belt Press Filter Conveyor Belt

Basic Information
Place of Origin: Hebei,China
Brand Name: SPEK
Certification: ISO901-2000
Minimum Order Quantity: 1pc
Price: 100~1000usd
Packaging Details: plastic bags
Delivery Time: 2-10working days
Supply Ability: 20000square meters
Detail Information
Material: 100% Polyester Usage: Powder Filter
HS Code: 59100000 Type: Plain
Techniques: Woven Size: OEM, Customizing Is Welcome
Color: White, Blue, Red Capacity: 99% Filter Dehydration
Package: Plastic Woven Bag Suitable Range: For Waste Water Sludge Dewatering
High Light:

woven fabric mesh belt

,

filter conveyor belt


Product Description

Product Description




  • Polyester spiral dryer fabric conveyor belt are made with special first quality yarns in 100% polyester.



  • Every polyester spiral dryer fabric conveyor belt heat-set granting a high degree of stability and long running life



  • Polyester spiral dryer fabric conveyor belt have the characteristics of stable running, not easy to wrinkled, high filtration rate and it can peel off easily from the filter cake.



  • Polyester spiral dryer fabric conveyor belt are suitable for drying packing paper, cultural paper, board paper and pulp board which be requested with big quantity.



  • Polyester spiral dryer fabric conveyor belt is widely used in paper making, mining, food, pharmaceutical, printing and dyeing, rubber industry.



  • Polyester spiral dryer fabric conveyor belt Also could be used as conveyor belt and the laminating machine matching belt.


Advantages of our polyester spiral dryer fabric conveyor belt are among others:

1.strength
2. flat surface
3.good air permeability
4.stable property against heat and moisture
5. low thermal shrinking, less elongation at heat
6.Resistant to most acids and organic solvents Safe for food processing

Applications of polyester spiral dryer fabric conveyor belt :

1.Filtering and separating in the colliery, food,salt and mine industry
2.Pulp making,Sulplate pulp packing and cardboard pulp
3.Fiberboard plants, Medicine,printing,drying industry as conveyor belt 4.Pharmacy,environment protection
5.Process hides,shoe-making,clothing,ceramics etc as a conveyor belt
6.Foodstuffs processing

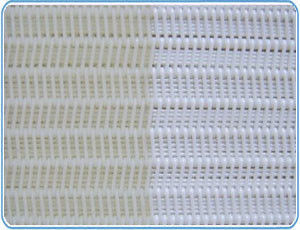

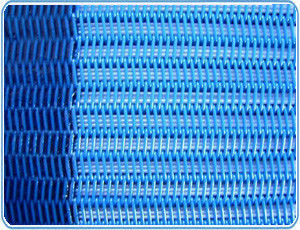

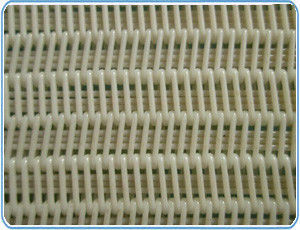

Polyester Spiral Dryer Sludge Dewatering Belt Press Filter Conveyor Belt 0Polyester Spiral Dryer Sludge Dewatering Belt Press Filter Conveyor Belt 1













Type

Spiral loop width

       mm

Filament diameter

      mm

Tensile strength

   N/m

Weight

Kg/m²

Thinckness

       mm

Air permeability

CFM

127/pa

Spiral ring mono filament

  mm

Connection

wire

  mm

Super loop

   09110

10 0.90 1.10 2300 1.64 3.03 200000 1250

 Large loop

 6890B

8 0.68 0.90 2000 1.31 2.45 18000 1125

Middle loop

  6890B



7.2 0.68 0.90 2000 1.40 2.45 16000 1000

Small loop

   5080

5.2 0.50 0.80 1800 1.0 1.87 15000 937
