| Place of Origin: | Guangdong，China |
|---|---|
| Brand Name: | SPEK |
| Certification: | ISO14009001 /SGS/CE/CCC |
| Model Number: | 65/90/65*1850 |
| Minimum Order Quantity: | 1set |
| Price: | 3000~100000usd |
| Packaging Details: | Packed with EPE foam, blanket and stretch film |
| Delivery Time: | 30-50working days |
| Supply Ability: | 20sets per month |
| Condition: | New | Application: | LLDPE Film/ LDPE Film/PE Film |
|---|---|---|---|
| Plastic Processed: | PE | Layers: | Three-screw |
| Voltage: | Up To Customer Required | Power: | 150kw |
| Screw Diameter: | 65/90/65mm | Screw L/D: | 30:1 |
| Products Width: | 1500mm/(3*500mm) Or 3*450mm | Screw Speed: | 50-150rpm |
| Thickness: | 0.01-0.05mm | Capacity: | 80-230kg/h |
| Layer Structure: | AB/ACBA | Total Weight: | 15T |
| High Light: | pvc stretch film making machine,stretch film extrusion machine |
||

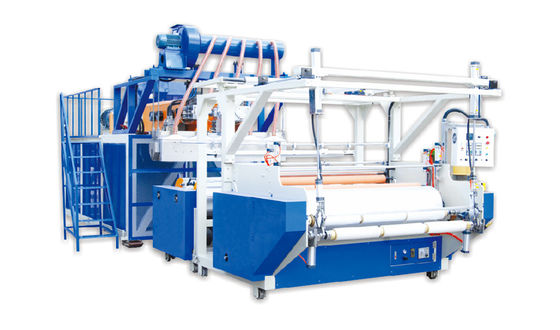

Features of pallet cast stretch film machine
1) Higher output with stable quality stretch film, superior than the same suppliers more than 30%.
2) Higher speed with good ideal tensile and anti-pricking stretch film, which ensure the bigger output.
3) Power saving and good plasticization which can save 1/3 power among the same model machine.
4) Good water cooling effect and imported die steel to make sure making even and good ductility
stretch film.
5) Swing system installed to adjust the film thickness and evenness.
6) The alloy screw adopts special mixing function and high plasticizing design which combine import
static mixer to ensure plasticization is great, color is uniform and increase extrusion capacity greatly.
7) Auto PLC controlled, Auto cutting & rewinding, fully automatic.
8) Bottom price with best WHOLE LIFE after sales service.
Finished Products of pallet cast stretch film machine
It is a very good kind of packaging material mostly used in the industrial field, port pallet packaging, building material packaging, hardware packaging etc. It enjoys the following advantages:
1) Good tensile strength.
2) Superior anti-pricking ability.
3) High transparency.
4) Good ductility and anti-impact strength.
5) Stable sticky sides etc.
| No. | Item | Specs | ||
| 1 | Voltage | Depend on your requirement | ||
| 2 | Frequency of the electricity | 50 HZ | ||
| 3 | Total Power | ≥ 150 KW | ||
| 4 | Structure of Film Layers | ABC/ABCBA | ||
| 5 | Width of finished Film | 1500 mm/3*500 mm or 3*450mm | ||
| 6 | Thickness of Film | 12 mu-50 m | ||
| 7 | Tolerance of Film Thickness | ±5% | ||
| 8 | Material | LLDPE or LLDPE+LDPE | ||
| 9 | Production Capacity | 80-230 kg/h | ||
| 10 | Dimensions (L×W×H) | (L)13500*(W)4500*(H)4500 mm | ||
| 11 | Gross Weight | 15000 Kg | ||
