Adherence resistance high temperature PTFE mesh conveyor belt drying belt

Basic Information
Place of Origin: Jiangsu China
Brand Name: SPEK
Certification: SGS
Model Number: H604
Minimum Order Quantity: 1pc
Price: 20~600usd
Packaging Details: Standard export cartons
Delivery Time: 2-10working days
Supply Ability: 100000square meters per week
Detail Information
Material: Glassfiber Open Mesh Max Width: 4000mm
Type: Flat Belt Thickness: 1mm
Tensile Strength: 390/320N/cm Color: Black , Brown
Heat Resistance: ~70℃~+260℃
High Light:

heat resistant conveyor belt

,

high temp conveyor belt


Product Description

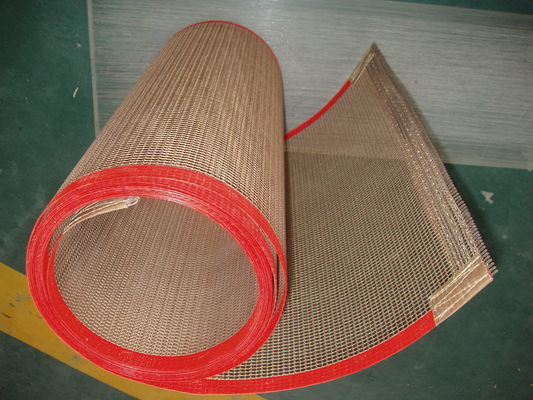

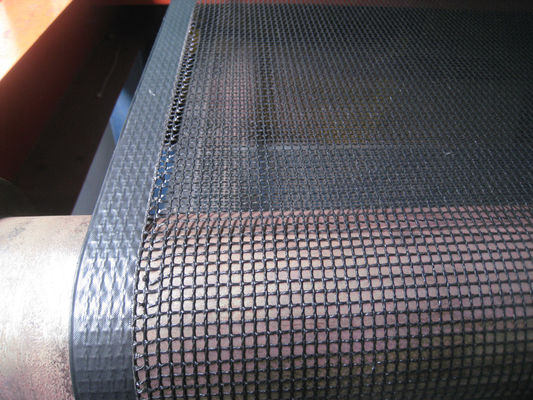

PTFE Coated Open Mesh Belt

PTFE coated fiberglass open mesh belt select fine fiberglass, Kevlar or Nomex as basic weaving material, coated with excellent PTFE resin to make it into various of PTFE conveyor belt.

Usage:

PTFE open mesh belts are used in screen printing to transport imprinted materials through drying ovens and cooling chambers. These belts are long lasting and perform well over a wide range of operating temperatures.

Fiberflon belt fabrication department can supply a wide variety of splices and edge reinforcements in order to respond customer’s specific applications.

Properties:

1. Outstanding temperature resistance (from -170ºC to +260ºC)

2. Resistant to corrosive agents

3. Low thermal mass

4. Controlled porosity

5. Superior non-stick surface, easy to clean

6. High dielectric strength

7. Dimensional stability

8. Resistance to UV, IR and HF

9. Non-toxic

10. Superior tracking

Styles and Specifications:

Adherence resistance high temperature PTFE mesh conveyor belt drying belt 0



Item Mesh Size material Thickness Weight Temperature resistance Max Width Tensile Strength
H601 1x1mm fiberglass 0.5mm 370g/m² -70-260℃ 4000mm 310/290N/cm
H602 2x2mm fiberglass 0.7mm 450g/m² -70-260℃ 4000mm 350/310N/cm
H603 4x4mm fiberglass
(black)
1.0mm 400g/m² -70-260℃ 4000mm 390/320N/cm
H604 4x4mm fiberglass 1.0mm 450g/m² -70-260℃ 4000mm 390/320N/cm
H607 4x4mm Kevlar + fiberglass 1.2mm 600g/m² -70-260℃ 4000mm 895/370N/cm
H608 4x4mm fiberglass 1.2mm 580g/m² -70-260℃ 4000mm 560/360N/cm
H610 4x4mm Kevlar 1.0mm 500g/m² -70-260℃ 4000mm 900/600N/cm
H612 4x4mm fiberglass
(black)
1.0mm 550g/m² -70-260℃ 4000mm 395/370N/cm
H613 10x10mm fiberglass 1.2mm 450g/m² -70-260℃ 4000mm 360/300N/cm
H614 0.5x1mm fiberglass 0.5mm 420g/m² -70-260℃ 4000mm 310/290N/cm
H615 2x2.5mm fiberglass 0.9mm 600g/m² -70-260℃ 4000mm 390/320N/cm



Adherence resistance high temperature PTFE mesh conveyor belt drying belt 1Adherence resistance high temperature PTFE mesh conveyor belt drying belt 2Adherence resistance high temperature PTFE mesh conveyor belt drying belt 3
