Product Details:
Place of Origin: Zhejiang, China
Brand Name: LIANGYU
Model Number: LY-TSF
Payment & Shipping Terms:
Minimum Order Quantity: 1unit
Price: usd10000-15000/unit
Packaging Details: Packed in standard export wooden case
Delivery Time: 30-50working days
Supply Ability: 50units/month

Touch Screen Control Textile Finishing Machine Automatic Folding Stitching Machine

Description
Certificate: CE Weight: 1800kgs
Power: 4.5KW Working Width: 2200-2800mm
Speed: 0-25m/min Overall Dimensions: 2910*4000*2350mm
Warranty: 12months Fabric: All Kinds Of Farbic
High Light:

textile inspection machine

,

fabric winding machine

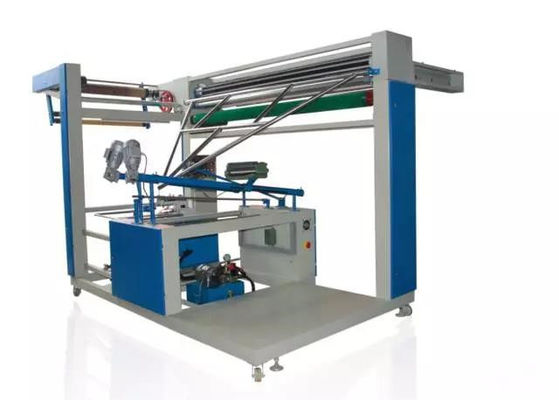

Automatic Folding & Stitching Machine equipped with centering machine







Usage: The machine is a newly research and developed model of Liangyu Company, patent NO. LZ:2014 20367 845.X.

The success of the development of this machine has drastically increases the working efficiency and reduced the labor intensity of workers,it is effectively solves the weft diagonal problem which caused by manpower and turly achieved “machine replace human”goal.

This machine is widely used in various kinds of brocade cotton tension polyester and other sensitive and easy scratching materials, the replacement of stitching yarn is easy and quick.



Features:

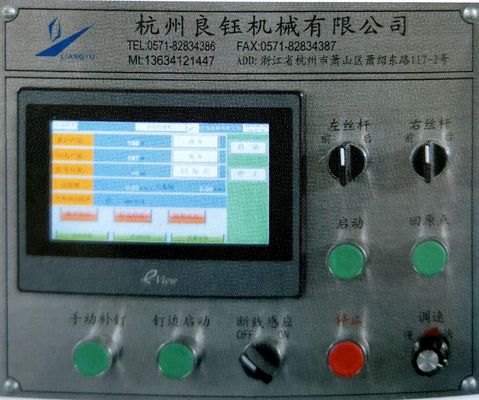

1. Control system based on PLC program controller and touch screen control,easy to operate.

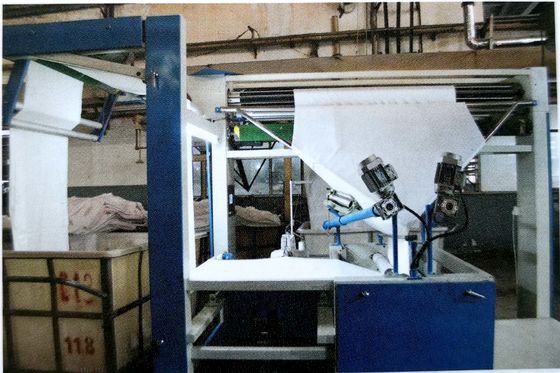

2. Equipped with centering machine,can accurately correct the fabric at center of the machine, and ensuring a smooth cloth turn and unfurl the fabrics in a smooth way.

3. Equipped 2stes cloth guide to control the edges of fabrics and made precise alignment.

4. Stitching margin can be adjusted freely.

5. Using fixed needle-point margin,edge distance can be adjusted according to customer needs, and added miss-sistching detector automatically detects when missing stitch ,the system will stop accordingly, after confirming the missing stitch can now be compensation.

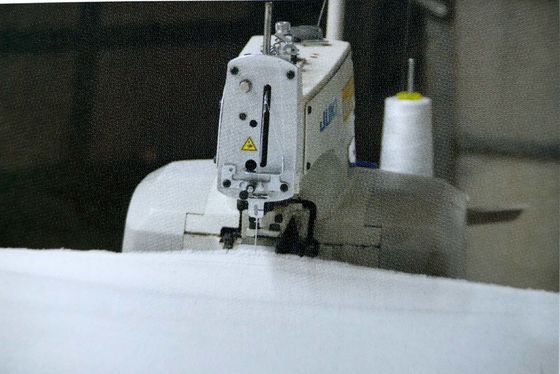

6. Stitching machine moves along with farbic at same speed, thus increase the stitching speed.

7. Stitching distance:66cm-120cm can be freely adjusted.



Technical Specifications:



Fabric Width 2200-2800mm
Stitching Speed 0-25m/min
Electric Specs 3Phase-380V 50HZ
Power 4.5KW
Dimension 2910mm*4000mm*2350mm
Weight 1800kg
